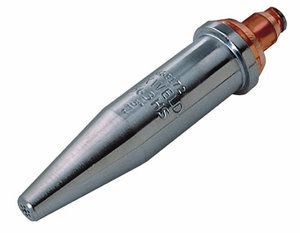

ESAB Oxweld 1563 HS Cutting Nozzle 1/2 inch - Acetylene - 639171 High speed with low acetylene consumption. Divergent Bore Cutting Oxygen Hole. ***Do not use with low pressure acetylene. *Use where high preheat intensity is desired. To clean preheat slots, remove external sleeve and use a soft bristled brush. NOTE DO NOT clean with notched-type wires or twist drills since any metal removal from the passages will destroy the precision cutting characteristics. Use the non-cutting wires and taper reamers included in OXWELD Cleaning Kit (Part No. 755F00). For longer life, nozzles should be cleaned periodically in a solution of OXWELD nozzle cleaning compound (Part No. 761F00). The cutting orifice of these nozzles should be cleaned only with OXWELD nozzle cleaning compound. * Hard drawn, electrolytic, tough pitch copper used in one-piece nozzles withstands heat and wear outlasts any copper alloy nozzle * One-piece nozzle has triple swaged interior gas passages are mirror smooth with internal angles rounded for non-turbulent, more efficient gas flow clean, smooth cuts with minimal kerf * Preheat ports are closely spaced around cutting orifice for greater concentration of preheat flames * Long, parallel preheat passages permit re-dressing nozzle without affecting performance * One-piece nozzle is a single piece of solid copper provides maximum cooling recommended always for acetylene, and for other fuel gases when heat exposure is unusually severe * Two-piece nozzles recommended for high efficiency with fuel gases other than acetylene solid copper, heavy-wall external sleeve and brass internal sections can be ordered separately to minimize replacement cost * Conical seats instant aligning provides tight seal, prevents leaks around nozzle nut (Esab oxweld 1563 hs cutting nozzle 1/2 inch ace 639171 was posted and is owned by: Lelia Hayes) |
