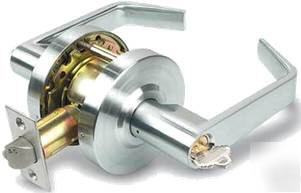

X series lock - commercial grade


X series lock - commercial grade
ANSI: Meets & Exceeds ANSI A156.2, Series 4000, Grade 2
UL Listing: UL Listed for "A" Label 3 Hour Fire Doors
Handing: Non-Handed - Completely reversible
Clutching Mechanism: Standard for Vandal Resistance - n/a for F84
ADA: Meets ADA and ANSI A117.1 accessibilty codes
Latch Face: 1 1/8" x 2 1/4" face standard - Self adjusting front for square or beveled edge doors.
Backset: 2 3/4" standard, 2 3/8" available with 1" x 2 1/4" face
Latchbolt: Stainless Steel with 1/2" projection
Lock Chassis: Steel, Zinc dichromated for Corrosion Resistance
Door Preparation: ANSI A115.2 - Through bolted installation
Door Thickness: Factory set for 1 3/4" - Adjustable from 1 3/8" to 2"
Strike: 4 7/8" x 1 1/4" ASA standard - T & Full lip available
Cylinder: 6 Pin Solid Brass, C Keyway, 2 Silver Nickel Keys Cylinder plug face matches lock finish
Trim: Solid zinc diecast levers, wrought brass roses
Lever Return: Stainless steel Anti-sag mechanism with Independentlever return springs to prevent lever sag
Lever Designs: Flat (standard, shown above) - Curved, Half Curve, S-A, S-B designs available by special order.
Standard Finishes: US26D, US10B, US3 *PVD, US26 *PVD(*PVD = Lifetime Finish)Other finishes available by special order
Screws: Combination screws for wood or metal doors & frames
Cycle Testing: Tested to over 2 million cycles
Warranty: Limited Lifetime Warranty
Please specify when ordering what function you would like: Entry, Passage, Privacy, Classroom, Storeroom
