Tektronix PPM203B micromanipulator with articulated arm


Tektronix PPM203B micromanipulator with articulated arm

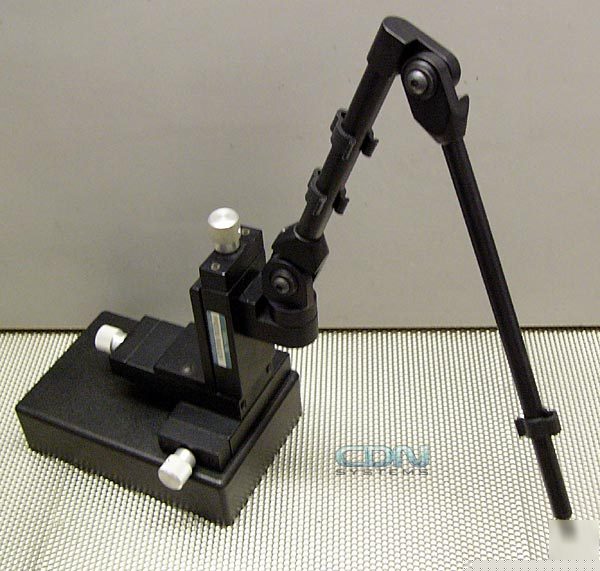

Tektronix PPM203B Micromanipulator with Articulated Arm
Three axis articulated arm with high-mass base
Articulated arm reach: X & Y: 14"; Theta: 180 degrees
Multi-turn fine adjustment controls for all three axes (10 turns/inch)
With adapters (not included), accepts most Tektronix probes, including SMD, 2.5mm, 3.5mm, 4mm, 5mm and P6245 style
Tektronix says: "The PPM series allows designers to guide standard handheld probes onto the small geometries of fine-pitch interconnects, SMD packages, MCMs (multi-chip modules), hybrids and ICs. The PPM articulating arms provide high accuracy and resolution by mechanically assisted probe positioning, helping designers meet the physical demands of probing the constantly shrinking geometry of devices.
"The PPM203B has a three axis arm system. It is a general-purpose benchtop probing aid designed to be used when probing PC boards, hybrids and MCMs that employ fine-pitch devices and interconnects. The PPM203B incorporates a weighted base that makes it well-suited to probing fine pitches in benchtop applications."
(Tektronix PPM203B micromanipulator with articulated arm was posted and is owned by: Alfredo Livingston)
Contact: a.livingston@chicagopartsnetwork.com (Alfredo Livingston) (actual email hidden)
Contact a.livingston@chicagopartsnetwork.com (Alfredo Livingston) for more information.
