Save 30% speech processor kit blows their ears off


Save 30% speech processor kit blows their ears off
If you can solder neatly and follow simple illustrated instructions, the DSP is for you. This complete kit includes all parts, wires, and a professionally made printed circuit board, ready for you to stuff, solder, and install. Just follow our detailed construction and installation steps, then sit back and blow the competition away!
Ever wonder why those Rock 'N Roll radio stations always seem so loud? Or why TV commercials seem to be louder than the program itself? The reason is because smart broadcasters use exactly the same modulation processing that's now yours in this simple add-on device. You won't find this circuitry in the average radio; it would cost a lot more. And the sophisticated design requires too many parts to fit inside a power mike.
Your voice only modulates a transmitter about 30% on the average. So during a one-minute transmission, you're really only hitting full RF power output for about 20 seconds; the other 40 seconds are wasted energy. Here's why: almost all of the voice power is concentrated in the consonant sounds (B, K, S, etc.). The vowel sounds (A, E, I, O, U) contain very little average power and can also create high-intensity peaks or "spikes" which easily overmodulate a transmitter. Overmodulation causes splatter and "bleedover" interference, and will not make you any radio friends! Finally, voice frequencies below 500 Hz and above 3000 Hz contain little actual power and don't really improve voice communications.

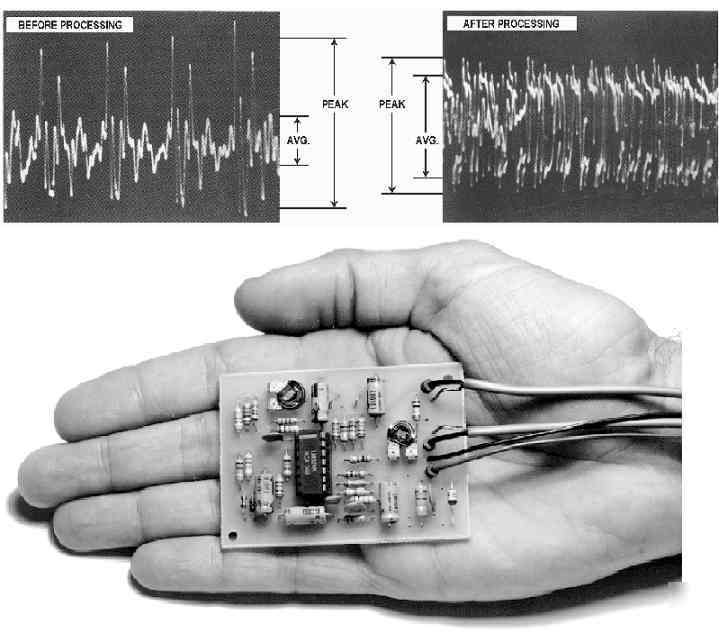

By using our DYNAMIC SPEECH PROCESSOR, the unwanted frequencies are reduced while at the same time the high intensity peaks are "clipped off." The 'scope photos below show how the DSP effectively raises the average power relative to the peak power. The result is a dramatic increase in perceived loudness by the listener, to about 90% average modulation. Now you're running at your full potential RF power output almost all the time! The best part is that proper adjustment of the DSP output eliminates overmodulation and channel bleedover, while still letting your voice punch through LOUD! And if your CB has a "Mike Gain" control, that gives you a convenient way to adjust the processing level right from the front panel to meet changing band conditions.
* 6 dB improvement (one S-unit) in AM/SSB audio power with little or no distortion. Improves communications during heavy interference or weak-signal conditions.
* Prevents overmodulation "bleedover" while maintaining extremely high average modulation. Over 30 dB of dynamic range is compressed to modulation levels averaging 90%, even when you whisper!
* Harmonic and RC filtering assure clean, problem free audio signal.
* Powerful IC design is equal to 15 transistors. Adjustable clipping and output controls to match any situation or radio; works with any CB or HAM transceiver.
* Jumper options to match any stock mike, power mike, high or low impedance.
* Fully adjustable INPUT (clipping level) and OUTPUT (modulation percentage) controls.
* Simple kit construction. Completely illustrated, non-technical instructions. Use soldering iron and common hand tools.
For the kit schematic, installation instructions, or our special illustrated article, "ALL ABOUT SPEECH PROCESSING," please contact Seller.
We combine multiple sales to save you money.
All other countries add $7 Air Mail.
Tel/FAX: (***) 434-9227, (***) 298-7980
