Reliance electric 1/6 hp motor


Reliance electric 1/6 hp motor

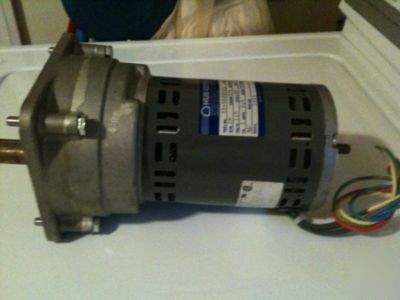

Reliance Electric 1/6 HP AC gear motor. This is a gear motor, so the motor turns at one speed (1625 rpm) and the shaft turns at another (28 rpm)
From info tag on housing: Thermally Protected Type R 1/6HP, 1625RPM, 115 Volt, 60Hz, 1PH, 2.5 Amp, 15 MIN Duty, 4DC AMB, B-1 INS 40MFD/250VAC.
from Hub City (distributor) tag: Part#:51-5000043; RPM 28; Torque 374; in lbs rating 57.8; Volts 115; Cycle 60; Duty 15 min; PH 1; AMPS 2.5; Class B-1; Insulation 4C; Model 2113.
Much of the information is repeated from mfg tag and the gear tag. Please contact with any questions.
I bought this motor with the intent to use, but it would not work for my purposes.
Please contact me via email with questions and I will do my best to help.
