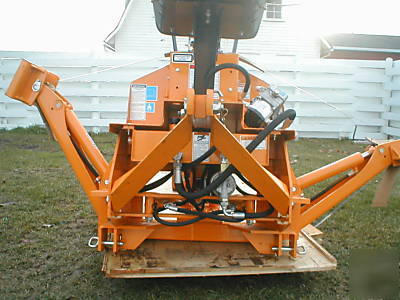

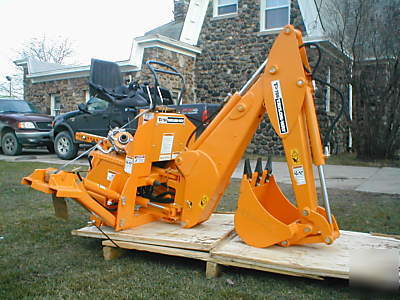

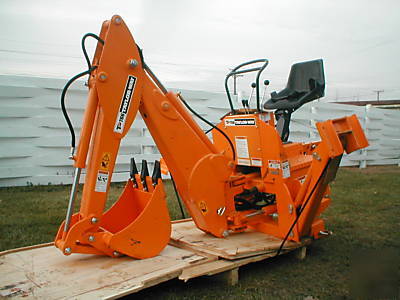

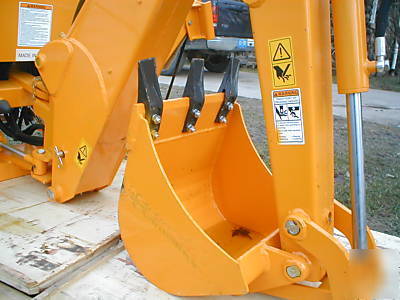

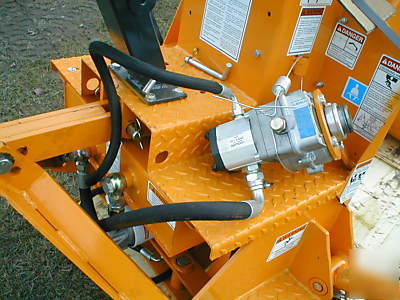

Taylor Way 766 Backhoe Attachment This backhoe comes with a 16" bucket and a 3 point hitch mounting kit. * Works with 35-50 HP tractors with a Category 1 3-point hitch * The tractor must have a rated lift capacity of 800-3,800 lbs. and up to a 5,000 lb. GVW * The tractor must have a rated flow of 6-8 gpm * Height with boom fully retracted is 5'8" * Width with stabilizers up is 5'6" * Overall length (including 3 point hitch bracket) is 8'1" * Transport overhang is 3'7" * Operating weight is 1,067 lbs. * Maximum digging depth is 6'6" * Overall operating height (fully raised) is 9'7" * Loading height (bucket at 60 degrees) is 5'10.75" * Reach from swing post is 9'5.25" * Stabilizer spread in the operating position is 7'5.5" * Stabilizer spread in the up position is 5'6" * Reservoir capacity is 3.2 gallons * Relief valve setting is 2,610 psi * Uses Type-A non-foaming hydraulic oil * Bucket cylinder digging force is 2,247 lbs. * Dipper cylinder digging force is 1,300 lbs. * Tooth wrenching strength is 3,300 lbs. * Swing arc rotation is 140 degrees * Bucket rotation is 170 degrees All specifications are approximate. (New taylor way 766 series backhoe attachment was posted and is owned by: Adeline Melendez) |
a.melendez@chicagopartsnetwork.com (Adeline Melendez) for more information.
