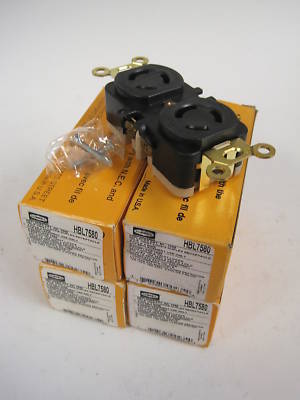

Item Title: Twist-Lock Receptacles Lot * Poles and Wires 3 Pole, 3 Wire Non Grounding * Design Type for Receptacles Duplex * Configuration Type Non NEMA * Terminal Clamp Material .062" (1.6) Steel * Terminal Screw Material #8-32 Brass * Contact Spring Material .031" Brass * Mounting Screw Material Steel-zinc-plated * Cover (Top) Material Black Nylon * Base Material Black Polyester * Ground Contact Material .031" Brass * Bridge (Mounting Strap) Material .050" Steel-zinc-plated * Auto Ground Clip Material Stainless Steel * Ratings Molded into face. * Dielectric Voltage Withstand 2,000V minimum * Temperature Rise Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. * Terminal Accommodation 15A-#14AWG * Terminal Identification Replacement use only * Flammability UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. * Operating Temperatures Maximum Continuous 75 C Minimum -40 C (w/o impact) (New hubbell HBL7580 twist-lock receptacles lot of 4 was posted and is owned by: Helen Mullen) |
HelenMullen@chicagopartsnetwork.com (Helen Mullen) for more information.
