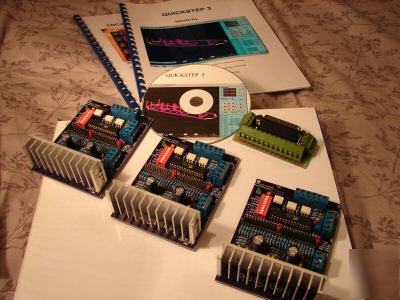

.Three amp per phase capacity (Six amps total capacity) Bipolar Chopper Drive Full Step Wave drive (one phase) .Optically Isolated Step and Direction Input via screw Lugs. .Optically Isolated and fully selectable Drive Enable Functions. .Built in motor test function. (Test motors without step and dir. Signals) "needed" .Switch selectable motor free wheeling when drive is disabled. .Switch selectable motor breaking when drive is disabled. .Drive always enabled function. .Switch selectable Microstepping functions. .ACR Automatic 50% Current Reduction when no step signals are present. This function can be selected on or off via switch selection. On- keeps heating low. .Up to 45 volt motor input voltage. .Eight to twenty volt motor logic input voltage .Plus five volt regulated output available via screw lug right on board. .NO Awkward chopper drive pots to adjust to set your motor current, and No Volt meters and amp meters or manuals needed to set your motor current. Simply set two amp select jumpers to your motors' amp capacity. .Built in large heat sink for easy fan cooling above 2 amps. .Drive functioning properly LED signal by a separate LED from that of power-ON LED. 3 STEPPER MOTOR DRIVERS WITH THE ABOVE SPECKS AND MANUAL 1 BREAKOUT BOARD TO DISTRIBUTE THE SIGNALS FROM YOUR COMPUTER TO THE DRIVER BOARDS (Cnc bipolar stepper motor drive system microstepping 3A was posted and is owned by: Max Neal) |
maxneal@chicagopartsnetwork.com (Max Neal) for more information.
