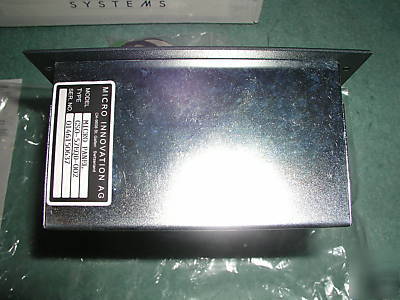

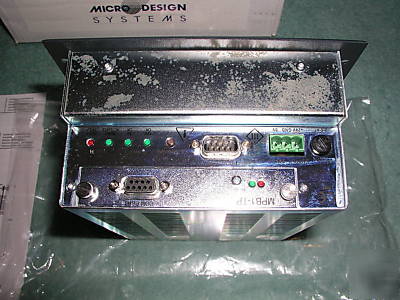

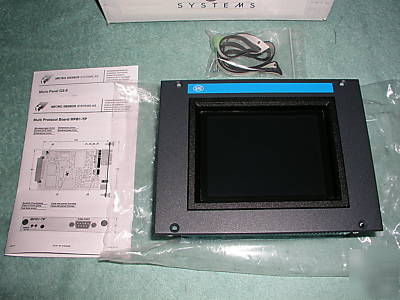

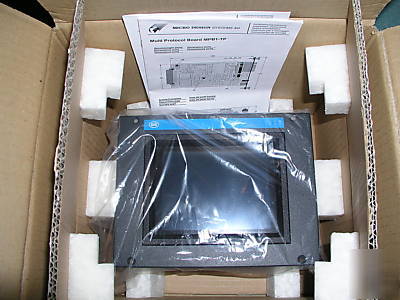

* Electroluminescent display (EL, yellow on black) * The Touch Screen operates on the active light matrix principle in the infrared range (IR Touch). The optical elements of the light matrix are located behind the IR transparent plastic frame in the front panel of the device. * The electroluminescent display (EL display) supplies a perfect screen image in all environmental conditions. Consequently, no settings need to be made by the user for this display type. The user can if required change the screen display to inverse in the Display Setup mask. * Project data is loaded via the 9-pin male programming port, which can also be used to * connect a printer with a serial interface for data logging. * The GS-0 provides two LEDs for monitoring the system voltages and two LEDs for monitoring the function of the Touch Controller. * The front Mounting bezel measures 220 mm wide with M4 countersunk mounting holes 180 mm apart and 170 mm tall with vertical mounting holes 142 mm apart. * The enclosure measures 201 mm wide x 144 mm tall x 82.5 mm deep and requires a 203 mm wide x 147 mm tall cutout. * Technology: Electroluminescent display (EL, yellow on black) * Resolution: 320 x 240 pixels, 35 x 15 characters * Display area: 115.1 x 86.3mm, 5.7" * Contrast ratio min.: 19:1, normally: 50:1 * The MPB1-TP Multi Protocol Communication Board supports all drivers and physical interfaces for a wide range of PLC types * The 9-pin female COM PORT interface can be configured via the jumpers for RS232, TTY (Factory Default), RS422 and RS485 protocols. * All of the following factory supplied items are included with the GS-0: The Power supply plug connector (Phoenix MSTB 2.5/3-ST-5.08), Gasket Seal, Four fixing screws for mounting the device (M4x16 countersunk), Installation instructions in five languages & Installation Instructions for the MPB1-TP Board * As can be seen from the picture, this unit has a blue rectangular screen printed area on the bezel with SIG written on it, so it most likely was a spare part for one of their packaging machines. It also had a tag that stated the material number is 54952038 which may be the SIG part number. This came in a lot of new spare parts still packed in the opened factory box. As can be seen in picture 4, there is a little bit of light cosmetic galvanic corrosion on the sheet metal side by the controls. However, this is just from storage and this unit is otherwise spotless. The hardware is still in the factory bag and this unit has never been installed. (New micro design micro panel gs-0 touchscreen hmi sig was posted and is owned by: Freddie Ewing) |
freddie_ewing@chicagopartsnetwork.com (Freddie Ewing) for more information.
