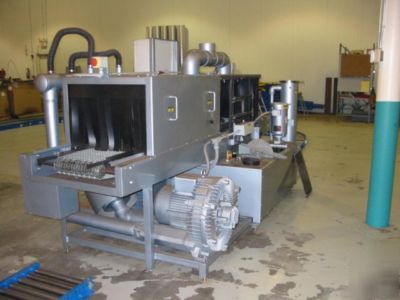

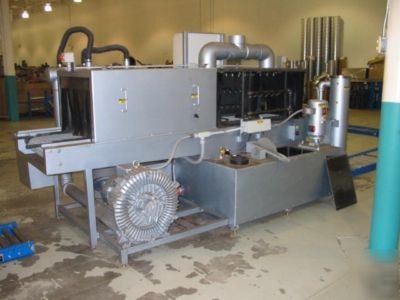

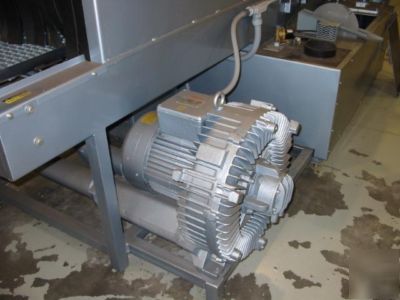

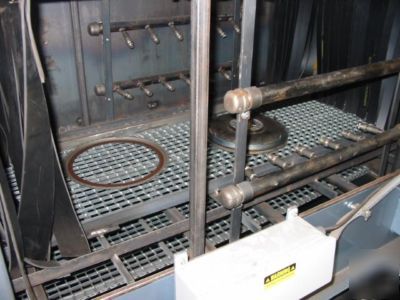

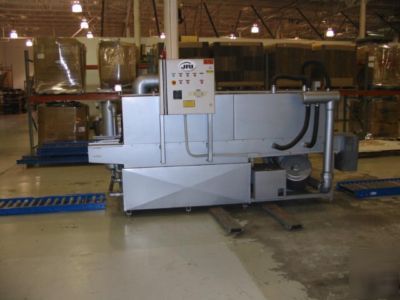

NEW JRI BRAND BELT WASHER - TWO STAGE - WASH & DRY We can also offer several additional options listed below. Model: MCC 1500 (mild steel construction) Approximate overall dimensions: 132 long X 62 wide X 72 tall Part opening: 24 Wide X 15 Tall Breakdown of zones within the unit: * 6 (1 4 ) clear load area * 28 (2 4 ) spray wash zone * 12 (1 ) drip/exit from wash * 16 (1 4 ) exit from wash Conveyor belt type: 16 Wide, 1 X 1 Galvanized Steel, flat wire clinched edge Max load of conveyor is 1,000 lbs. evenly distributed. Drive system: Variable speed, Direct Current (DC) Operating speed is 1 to 12 /min. with current sprocket-to-sprocket ratio. Blow-off Stage (Mild Steel) (Up graded from 10hp to 15hp high performance with muffler.) Tank accessibility: The solution tank is equipped with a large lift-off hatch to provide access to the tank for cleaning and/or service. Closed-Loop Re-circulating Pump: 5HP 85GPM @58PSI Cast iron Upgraded to 7.5 Hp 75psi @200 gpm Heat source: 36KW Electric heat Up Graded to include GAS HEAT with back up electric Solution capacity: 200 Gallons Drain: 2 Conveniently located for ease of draining. THE FOLLOWING OPTIONS ARE INCLUDED MCCS-1500, CONVEYORIZED CLEANING SYSTEM, Basic conveyorized cleaning system in a mild steel configuration with wash section. LOW WATER SHUT OFF The low water shut-off incorporates an adjustable, 2 diameter, stainless steel float-switch that is to be mounted at such a distance above the heater so as to protect the heater in the event of a low-water condition. In the event that a low-water condition exists, the low water shut-off will turn off the heater and/or pump circuit(s), thereby protecting the heater and pump. Disk style oil skimmer removes oil from wash solution to extend bath life. Unit is equipped with a 16" belt we can install a 24". . Call me to discuss these options (***)-540-7575 Many firms are finding leasing to be a great option that allows them to user their cash for other needs. (New belt washer gas heat - special price with options was posted and is owned by: Jorge Rosario) |
JorgeRosario@chicagopartsnetwork.com (Jorge Rosario) for more information.
