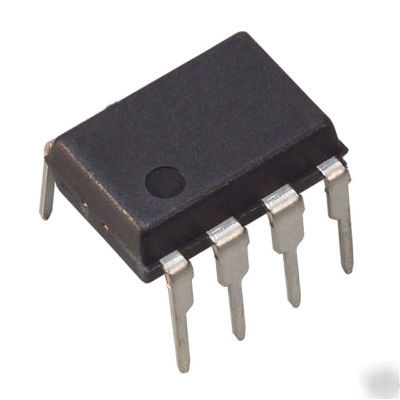

1 W BTL audio amplifier with digital volume control One pin digital volume control Volume setting with UP/DOWN pulses Low saturation voltage of output stage standby mode controlled by CMOS compatible levels No switch-on/switch-off plops High supply voltage ripple rejection Protected against electrostatic discharge Outputs short circuit safe to ground, VP and across the - The TDA8551; TDA8551T is a one channel 1 W Bridge-Tied Load (BTL) audio power amplifier capable of delivering 1 W output power to an 8 W load at THD = 10% using a 5 V power supply. The circuit contains a BTL power amplifier, a digital volume control and standby/mute - The TDA8551T comes in an 8 pin SO package and the TDA8551 in a 8 pin DIP package. (Ic chips: TDA8551 btl audio amp digital volume control was posted and is owned by: Dora Casey) |
