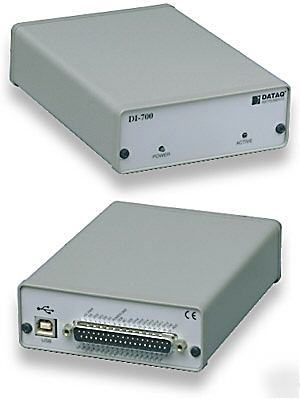

DATAQ DI-700 USB Data Acquisition System Front panel (top) and rear panel views of the low cost DI-700 USB data acquisition instrument. The DI-700 features integral USB and signal I/O connectors. The LEDs indicate power and active status Our DI-700 defines new price/performance standards for PC-based data acquisition. Designed to communicate with your PC through its USB port, the DI-700 offers 16 single-ended or 8 differential analog input channels that can be programmed individually for optimal use. Each of the DI-700's channels is capable of measuring ±10 volts full scale across four programmable gain selections (1, 10, 100, and 1000 for -PGL models or 1, 2, 4, and 8 for -PGH models), making it possible to measure a wide range of signals simultaneously. Sample at speeds up to 900 samples per second with 14-bit measurement resolution. The DI-700 also offers eight programmable digital input lines and eight programmable digital output lines. The USB interface provides the ultimate plug-and-play connection. It provides power for the DI-700 and allows you to connect/disconnect the DI-700 at will without rebooting the computer. Sleek, Low Profile Package Measures Only 1½ x 4¼ x 5½ Inches Connects To the USB Port of Any Desktop, Transportable, Notebook, or Laptop PC Add the DI-75B To Pre-Condition Any Industrial Signal Use the AC/DC Current Probe for measuring in cable bundles and tighter areas 16 Single-Ended or 8 Differential Analog Inputs Maximum Sample Rate of 900 Hz* Measurement range of ±10mV to ±10V (-PGL Models) or ±1.25V to ±10V (-PGH Models) Includes Users Manual and USB Cable. (Dataq di-700 usb data acquisition system was posted and is owned by: Kristin Trevino) |
