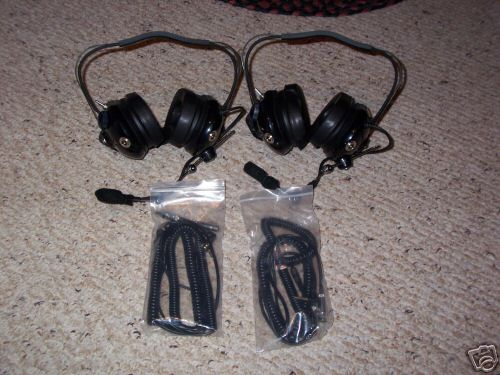

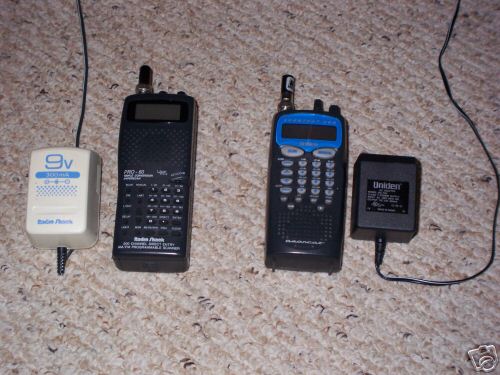

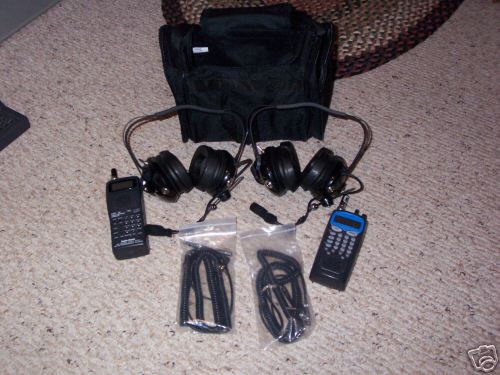

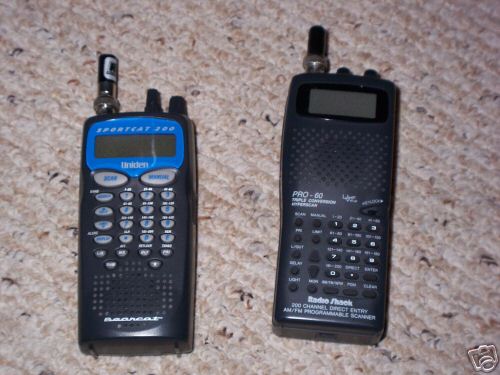

Fully Programmable 200 Channel Handheld Sport Scanner Twin Turbo Scan & Search The SC200 features 200 channels, 12 bands, 10 banks, alpha tagging, a backlit LCD, a cloning feature, and band search. Other features include a VFO knob, Twin Turboâ„¢ Search and Scan, a 3.5mm headphone jack, memory backup, one touch weather, a rechargeable NiCd battery pack, lockout and delay. handheld * Exclusive patented PNRâ„¢ audio technology * Lightweight, comfortable, easy custom fit * Rugged cables with polyurethane insulation * Spiral shielding reduces RF interference * 3.5mm gold-plated plug provides superior audio Pro-60 (200-0309) Specifications Faxback Doc. # 15358 30.0-87.4950 MHz (in 5 kHz steps) 87.5-107.9500 MHz (in 50 kHz steps) 108.0-136.9750 MHz (in 25 kHz steps) 137.0-224.9950 MHz (in 5 kHz steps) 225.0-399.9875 MHz (in 12.5 kHz steps) 400.0-512.0000 MHz (in 12.5 kHz steps) 760.0-824.0000 MHz (in 12.5 MHz steps) 849.0-869.0000 MHz (in 12.5 kHz steps) 894.0-999.9875 MHz (in 12.5 kHz steps) Total Channels:................................210 (20 channels x 10 banks) (FM 20 dB (S+N)/N at 3 kHz deviation): 30-512 MHz:......................................................1 microV 760-999.9875 MHz:................................................1 microV (AM 20 dB (S+N)/N at 60 % modulation): 30-512 MHz:......................................................2 microV 760-999.9875 MHz:................................................2 microV (WFM 30 dB (S+N)/N at 45 kHz deviation): 30-512 MHz:......................................................3 microV 760-999.9875 MHz:................................................3 microV Spurious Rejection: (FM at 328 MHz):..................................40 dB +/-10 kHz,..........................................................-6 dB +/-15 kHz,.........................................................-30 dB +/-100 kHz,.........................................................-6 dB +/-200 kHz,........................................................-50 dB 611.2 MHz at 512 MHz:...............................................50 dB Scanning Rate:.............................................25 channels/sec. Search Rate:..................................................50 steps/sec. Priority Sampling:................................................2 seconds Delay Time:.......................................................2 seconds Audio Output Power:..........................................10% THD 180 mW 1st:....................................................608.005-611.2 MHz 2nd:...............................................................45 MHz 3rd (WFM):.......................................................10.7 MHz 3rd (FM/AM):......................................................455 kHz Threshold (FM/AM):...................................Less than 0.5 microV Threshold (WFM):.......................................Less than 3 microV Tight (FM/AM):..............................................(S+N)/N 25 dB Tight (WFM):................................................(S+N)/N 40 dB Antenna Impedance:..................................................50 ohms Built-in Speaker:.............................1 3/8" (36 mm) 8 ohm, dynamic Power Requirement:....................................+9 VDC, 6AA Batteries or a suitable adapter (negative ground only) Current Drain (Squelched):...........................................100 mA Operating Temperature:....................+ 14 degrees F to + 140 degrees F (-10 degrees C to +60 degrees C) Residual Noise:.........................Volume control, set to its minimum, Channels of Operation:.............Any 200 channels in any band combination Channels, frequency, and mode display:...............Liquid Crystal Display Receiving System:..............Direct key entry digital-control synthesizer 3rd IF: 10.7 MHz (WFM), 455 KHz (NFM/AM) Power Source:.....................................9VDC negative ground only 6 AA batteries or a suitable adapter Jacks:.........................Antenna, earphone, external power and charge Receiving System:..............Direct key entry digital-control synthesizer 3rd IF: 10.7 MHz (WFM), 455 kHz (NFM/AM) Dimensions:............................6 5/16 x 2 7/16 x 2 1/8 inches (HWD) Weight (without antenna and batteries):.....................Approx. 8.8 oz. (Complete nascar race scanner package was posted and is owned by: Stacey Mcfadden) |
stacey.mcfadden@chicagopartsnetwork.com (Stacey Mcfadden) for more information.
