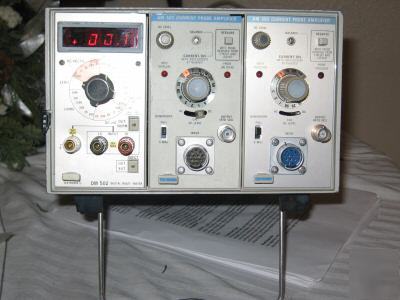

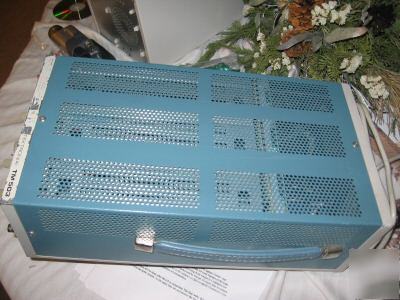

Tektronix TM 503 Power Module with (2) AM 503 Current Probe Amplifiers Power Module Mainframe The TM503A is a three-wide power module compatible with all TM500-Series plug-ins. Up to three single width modules can be plugged into the TM503, or one single and one double width module can be accommodated. * Operating Temperature Range 0-+50 C * Operating Altitude Range: Sea Level to 15, 000 ft * Maximum power consuption 250 VA * Power line frequency range: 48 Hz to 440 Hz AM 503 Current Probe Amplifier * Displays Current Signals on an Oscilloscope * Current Range, Maximum Current, and Bandwidth Determined by the Probe. * Allows display of current on any oscilloscope with 10 mV/div sensitivity, 50 ohms or 1 M ohm input. * Bandwidth can be set to Full (where it is limited by the probe in use) or to 5 MHz. * Coupling can be switch selected to ac or dc. * Maximum Input Current - 20 A (dc + peak ac) for A6302; 100 A (dc + peak ac) for A6303. * Maximum Voltage for Current Under Test (Bare Conductor) - 500 V (dc + peak ac) for A6302; 700 V (dc + peak ac) for A6303. * Bandwidth (-3dB) - Dc to at least 50 MHz with A6302; Dc to at least 15 MHz with A6303. * Rise Time (Full Bandwidth) - 7 ns or less with A6302; 23 ns or less with A6303. Deflection Factor - 1 mA/div to 5 A/div for A6302; 20 mA/div to 50 A/div for A6303. In a 1-2-5 sequence for both probes. Picture shows the TM 503 is suppling power to the two AM 503 and DM 502. AM 503 are both showing power received by the light on the dial. This is as far as I can test it. The manuals will be included on cd-rom. DM 502 Not Included (far left in picture) Guaranteed Not Dead On Arrival (Tektronix TM503 power module & AM503 current amplifier was posted and is owned by: Shelly Fletcher) |
Shelly_fletcher@chicagopartsnetwork.com (Shelly Fletcher) for more information.
