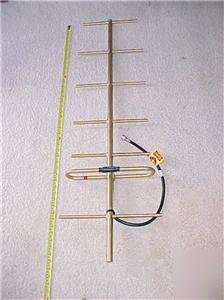

NOS Kathrein-Scala 20dB 50ohms 7 Elmnt Yagi Antenna 44" New old stock in good condition. The TY series is specifically designed for professional fixed-station applications in the 890 960 MHz band. * Frequency range 890 960 MHz * VSWR < 1.5:1 maximum (1.35:1 typical) * Polarization Horizontal or vertical * Front-to-back ratio >20 dB * Maximum input power 100 watts (at 50 C) * H-plane beamwidth 48 degrees (half-power) * E-plane beamwidth 40 degrees (half-power) * Equivalent flat plate area 0.24 ft (0.022 m) * Wind survival rating* 150 mph (240 kph) * Mounting For masts of 1.25 to 2.375 inch (32 to 60 mm) OD. The Kathrein-Scala TY series are rugged broadband yagi antennas fabricated of 6061/T6 aluminum rod and seamless drawn pipe, anodized for maximum reliability and corrosion resistance. The hardware and fastenings are stainless steel. The internal balun, coax feed and connector are sealed in a foam potting system to prevent moisture penetration and assure long service life in severe environmental conditions. The heavy aluminum mounting casting allows installation for V or H polarization. Thanks for looking and thank you for your purchase. (Nos kathrein-scala 20DB 50OHMS 7 elmnt yagi antenna 44" was posted and is owned by: Sallie Mcconnell) |
