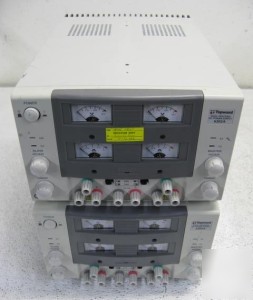

Lot of 2 Topward 6302A Analog DC Power Source Repair One unit will power on, but fans make a clicking sound, will need repair Units are sold for parts or repair Units are in good cosmetic condition, see photos for details. Included are such features as constant voltage and constant current modes, short circuit protection, front-panel outputs, operating mode indicators and a simple to read analog meter for easy setup and monitoring of outputs. Also provided are 5 V/3 A outputs along with the normal adjustable outputs. Ripple and noise are less than 0.5 mV rms or 4 mV p-p in the constant voltage mode and 0.5 mA rms or 4 mA p-p in the constant current mode. Line regulation is also good: 0.02% + 2 mV (CV), 0.02% + 250 A (CC). Load regulation: 0.02% + 2 mV (CV), 0.02% + 500 A (CC). Output impedance: 5 m Ohm + 2 H. Programming speed: UP NL 400 mS FL600 mS; (0.5% to 9.5%) Down NL 2.5 d FL200 mS. Operates from 115/230 V ( 10%), 50/60 Hz input power. Multiple Output DC Rated: 2 ea. 0 to 30V @ 0 to 2 A, 5 V @ 5 A Outputs: Triple (Lot of 2 topward 6302A analog dc power source repair was posted and is owned by: Mari Frank) |
