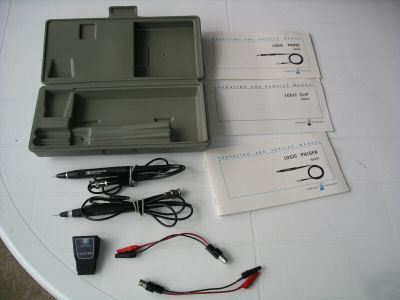

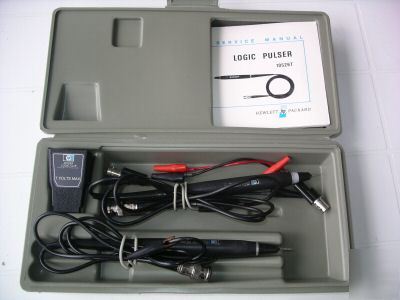

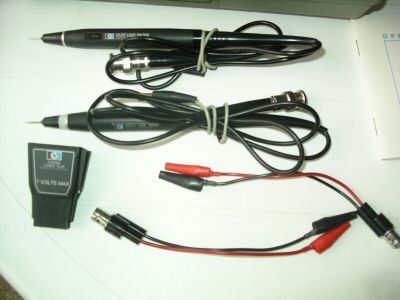

HAWLETT PACKARD hp 50157 LOGIC TROUBLESHOOTING KIT Troubleshooting Kit provides time saving troubleshooting by locating bad nodes in circuit quickly and simply find the faulty node or integrated circuit. 1 x 10528A Logic Clip1 x 10525T Logic Probe 1 x 10526T Logic Pulser1 x Operating and service manual 10525T1 x Operating and service manual 10526T1 x Operating and service manual 10528A2 x Power suplay connector adaptor: BNC to dual alligator clips1 X Original Box The 10525T Logic Probe provides TTL/DTL trouble-shooting at low cost. Ideally suited to 5 V logic applications, the 10525T has high input impedance (<25 kohms in both high. and low state), overload protection, and 50 MHz data rate capability. Minimum input pulse width of 10 nS The 10526T Logic Pulser provides dependable single-shot operation in TTL/DTL applications. Just press the pulse button and the pulser delivers a single powerful pulse of the correct pulse width, polarity and amplitude. Output Pulse Voltage: >2 V @ 0.65 A (high pulse), ( 1A typical at Vps=5V) <0.8 V @ 0.65 A (low pulse) ( 1A typical at Vps=5V) Output Impedance: <2 ohm (active state), >1 Mohm (off state The Logic Clip 10528A is an extremely handy service and design tool which clips onto dual-in-line-package (DIP) ICs, instantly displaying the states of up to 16 pins. Each of the clip's 16 LEDs independently follows level changes at its associated pin. The real value is in its ease of use. No controls to set, needs no power connections, and requires practically no explanation as to how it is used. This clip even has its own gating logic for locating ground and Vcc pins and its buffered inputs reduce circuit loading. Functions, in effect, as 16 binary voltmeters. Input threshold: 1.4 ±0.6 V; TTL or DTL compatible. Input Z: one TTL load, 1.2 mA per input Au $16.50 by Express Post (Australia) AU $29.80 world wide by Airmail 4-10 Day transit (Hp logic probe 10525T pulser 10526T clip 10528A kit was posted and is owned by: Samantha Hendrix) |
