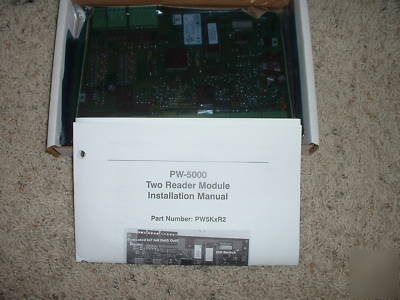

Honeywell Nexwatch PW5K1R2 reader interface board Flexible, modular design fits a wide variety of applications Eight supervised, user-programmable inputs and six programmable relay outputs offer flexible system configuration and control Supports a wide range of reader technologies including magnetic stripe,Wiegand, proximity and keypad Door Open/Closed supervision Optional tile mounting is cost-effective for remote configurationsThe PW5K1R2 interfaces with the PW5000 Intelligent Control Module (PW5K1IC)providing I/O support for two card readers. The PW5K1R2 is connected to thePW5K1IC Intelligent Control Module through a supervised RS-485 bus at 38,400bps. It provides two Wiegand format reader ports, up to eight supervised inputs and up to six relay outputs.Hardware interface configuration and card format settings are loaded from the connected intelligent control module. In the event that the communication to aPW5K1IC is lost, the PW5K1R2 can grant access based on facility code.The PW5K1R2 is designed to be wall or rack mounted for maximum density, or tilemounted to save on cost when it is remotely located near the devices to becontrolled. The chips on the board say STD-R2-U6 version 1.03.4 rev C (Honeywell prowatch PW5K1R2- dual reader interface was posted and is owned by: Beth Mcleod) |
bmcleod@chicagopartsnetwork.com (Beth Mcleod) for more information.
