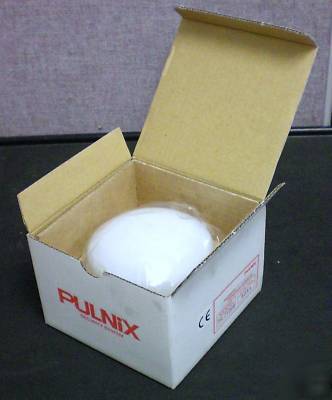

360 x 60' diameter when mounted at 16.5', Digital Quad, Mirror Optic, On-board pattern locator, Automatic temperature compensation, Form "C" output, Tamper Circuit, Alarm Memory, 9 to 18VDC, UL Listed. Features: Two quad (octa-) element transducer Automatic temperature compensation Specifications: Area: Round type (360 coverage) Coverage: 12m (40') diameter at 3.6m (12') Number of sensitive zones: 264 (33 sets) Mounting position: Indoor ceiling within 3.6m (12') Supply voltage: 9V to 18V DC (non-polarity) Power consumption: 15mA (at 12V), 20mA (during aim adjustment) Alarm output: 0.1A, 30V, 1c Reset: 2 sec +/- 1 sec Ambient temperature range: -10C to +50C (+14F to +122F) Memory function: Control at terminal 8: lights up for memory indication LED control: Control at terminal 9 or built-in switch Retail: $173.59 (new) If you have any question regarding this unit please feel free to contact me and I will do my best to answer your questions (New takex pulnix PA7100E pir detector ceiling sensor * * was posted and is owned by: Susan Briggs) |
SBriggs@chicagopartsnetwork.com (Susan Briggs)
for more information.
