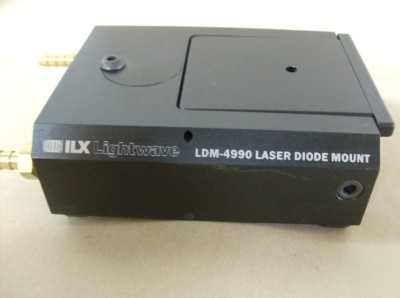

ILX LIGHTWAVE TEMP CONTROL LASER DIODE MOUNT LDM-4990 This is a ILX LIGHTWAVE SYSTEMS LASER DIODE MOUNT. * Accepts 5.4mm, 5.6mm, and 9mm TO-can packaged laser diodes * Temperature control range from -20 C to +85 C with nitrogen purge capability * Quick device insertion and removal without special tools * Configurable pin-out header * Optional mounting post for ILX OMH power and wavelength measurement heads * Compatible with ILX Lightwave current sources and temperature controllers The LDM-4990 Laser Diode Mounting Fixture provides a compact, easy to use solution for locating and temperature controlling 5.4mm, 5.6mm, and 9mm TO-can packaged laser diodes. These mounting fixtures feature an access door for easy device insertion and clamping, configurable pin headers for varying package pin-outs, and a temperature control range of -20 C to 85 C. High positional and thermal resistance repeatability ensure consistent device testing and repeatable measurements. The LDM-4990 has been optimized for fast pre and post burn-in characterization in manufacturing test applications with ease of device insertion and removal, a wide temperature control range and easy integration with ILX power and wavelength measurement instruments . These mounts are compatible with most ILX Lightwave current sources and temperature controllers with standard laser and temperature controller connectors designed into the fixture. http:// /propgs/laser-diode-mount-4990.html (Ilx lightwave temp control laser diode mount ldm-4990 was posted and is owned by: Ila Kemp) |
