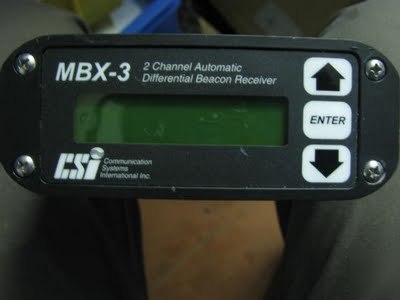

good state,just what you seen. without the accessories Channels: 2 independent channels Frequency Range: 283.5 to 325.0 kHz MSK Bit Rates: 50, 100, and 200 bps Demodulation: Minimum shift keying Sensitivity: 2.5 V/m for 10 dB SNR Adjacent Channel Rejection: 60 dB Correction Output Protocol: RTCM SC-104 Input/Status Protocol: NMEA 0183 Interface Level: RS-232C or RS-422 Operating Temperature: -30 C to +70 C Storage Temperature: -40 C to +80 C FCC: Part 15, sub-part J, class A Antenna Voltage Output: 10 VDC (5 VDC optional) Dimensions: 150 mm L x 125 mm W x 51 mm H Display: 2-line by 16-character LCD Power Connector: 2-pin circular locking Optional GPS Output Port: TNC-S RTCM SC-104 correction and NMEA status message output (Default Mode) message input for position and satellite Receiver Automatic and Manual tune command Frequency and data rate query Receiver performance and operating status queries Automatic search almanac queries (proprietary) Baud rate selection command (proprietary) Force cold start command (proprietary) Software upgrade command (proprietary) Configuration up-load command (proprietary) CSI Beacon Command Center: MS Windows 95 beacon Dual independent channels for superior State-of-the-art digital architecture enhances Fast acquisition times ensure you are up and 2-line by 16-character LCD display provides more Global beacon table listing gives you quick Low power consumption gives extended battery life for portable applications Automatic and manual tune modes provide Optional internal splitter and GPS signal output port for use with combination GPS/beacon Firmware upgrades are easily loaded into the receiver through the serial port Wide selection of antennas available The CSI MBX-3 beacon receiver employs CSI s third generation of digital receiver technology to receive free DGPS signals broadcast by the networks of 300 kHz radiobeacons deployed worldwide. Using these signals, the MBX-3 beacon receiver outputs differential correction data in the industry standard RTCM SC-104 format accepted by differential-ready GPS The advanced digital signal processing techniques of the MBX-3 allow for reliable extraction of DGPS data from the beacon broadcasts, even in noisy environments. (Csi mbx-3 2 channel automatic dgps receiver was posted and is owned by: Allison Snyder) |
