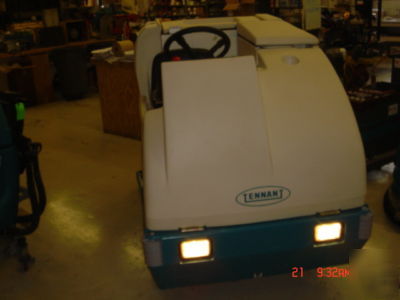

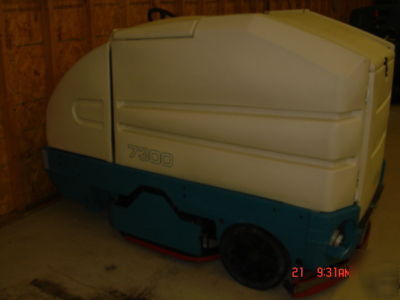

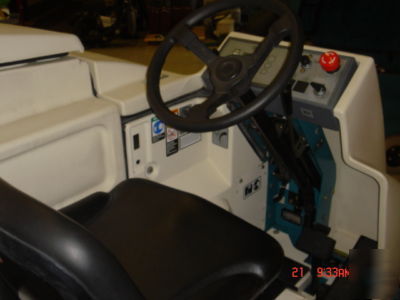

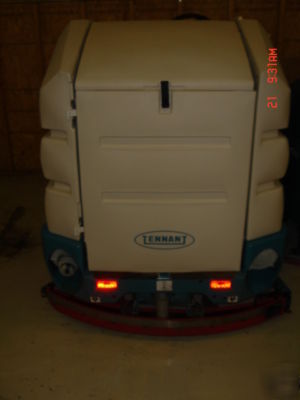

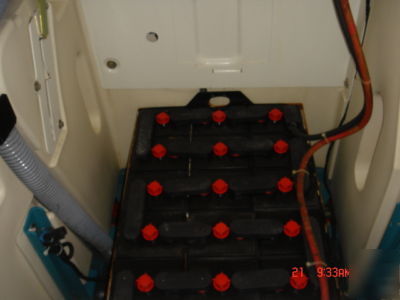

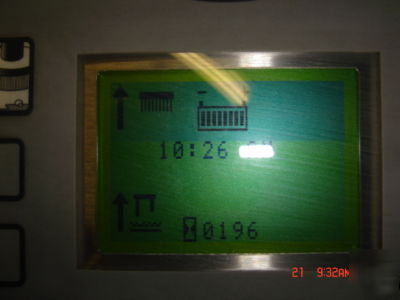

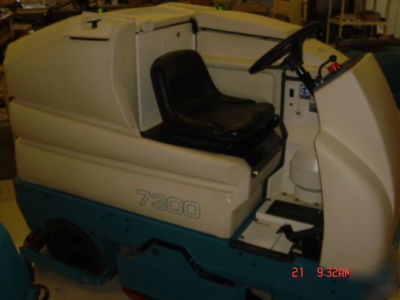

This is the Tennant 7300 rider scrubber, Good batteries, charger, new brushes, squeegees, gaskets, Paint, & This floor scrubber only has 196 hrs on the unit. They are over $30,000.00 new! Specs below, any questions call or email Andrew (***)-406-3443 or (***)-582-7645 (245)or HAtkins@chicagopartsnetwork.com GENERAL MACHINE DIMENSIONS/CAPACITIES Item Dimension/capacity Length 2134 mm (84 in) Width, frame 1143 mm (45 in) Width, frame with right hand side brush (option) 1282 mm (50.5 in) Width, frame with dual side brush (option) 1422 mm (56 in) Width with rear squeegee 1300 mm (51 in) Width with MaxPro 1200 scrub head option 1510 mm (53 in) Height 1450 mm (57 in) Height with overhead guard option 2070 mm (81.5 in) Disc brush diameter for Max Pro 1000 510 mm (20 in) Disc brush diameter for Max Pro 1200 406 mm (16 in) Cylindrical brush diameter 229 mm (9 in) Cylindrical brush length for Max Pro 1000 978 mm (38.5 in) Cylindrical brush length for Max Pro 1200 1180 mm (46.5 in) Rear Squeegee width for Max Pro 1000 1300 mm (51 in) Rear Squeegee width for Max Pro 1200 1510 mm (59.5 in) Scrubbing path width for Max Pro 1000 1020 mm (40 in) Scrubbing path width for Max Pro 1200 1220 mm (48 in) Solution tank capacity 216 L (57 gal) Recovery tank capacity 216 L (57 gal) Tank capacity with ES option 340 L (90 gal) Propelling gear box 90 wt. gear lubricant capacity 2.7 L (2.7 qt) GVWR 2060 kg (4580 lb) FaST SYSTEM Item Measure Solution pump 36 Volt DC, 5A, 5.7 LPM (1.5 GPM) open flow, 45 psi bypass setting Low solution flow rate 2.08 LPM (0.55 GPM) High solution flow rate 4.16 LPM (1.1 GPM) Detergent pump 36 Volt DC Low concentrate flow rate 2.14 CC/Minute (0.07 Liquid Ounces/Minute) High concentrate flow rate 4.28 CC/Minute (0.14 Liquid Ounces/Minute) Air pump 36 Volt DC, 0.6 Maximum Amp draw Air pump flow rate 8.7 LPM (0.3 CFM) open flow GENERAL MACHINE PERFORMANCE Item Measure Maximum forward speed 7.2 km/h (4.5 mph) Maximum reverse speed 4.8 km/h (3mph) Minimum turning radius, left 3620 mm (142.5 in) Minimum turning radius, right 3680 mm (145 in) Minimum isle turn width 2410 mm (95 in) Maximum rated climb and descent angle with full tanks 6_ Maximum rated climb and descent angle with empty tanks 8_ POWER TYPE Type Quantity Volts Ah Rating Weight Batteries, Dry 1 36 500 @ 6 hr rate 617 kg (1370 lb) 1 36 750 @ 6 hr rate 893 kg (1984 lb) Batteries, Sealed 1 36 600 @ 6 hr rate 810 kg (1800 lb) Batteries, Wet 1 36 380 @ 6 hr rate 436 kg (960 lb) 1 36 500 @ 6 hr rate 617 kg (1370 lb) 1 36 750 @ 6 hr rate 893 kg (1984 lb) Type Use VDC Kw (hp) Electric Motors Scrub brush 36 0.75 (1) Heavy Duty scrub brush 36 1.12 (1.5) Vacuum fan 36 0.63 (0.85) Propelling 36 3.4 (4.6) Type VDC amp Hz Phase VAC Chargers 36 75 60 1 208-240-480 36 75 60 3 208-240-480 36 120 60 1 208-240-480 36 120 60 3 208-240-480 36 150 60 1 208-240-480 36 150 60 3 208-240-480 36 93 60 1 208-240-480 36 93 60 3 208-240-STEERING Type Power source Emergency steering Front wheel controlled, universal joint to gear and chain Manual Manual Front wheel, hydraulic cylinder and rotary valve controlled Hydraulic (Option) Manual HYDRAULIC SYSTEM System Capacity Fluid Type Hydraulic reservoir (Power Steering Option) 1.9L (0.5 gal) Hydraulic total (Power Steering Option) 2.3L (0.6 gal) TENNANT part no. 65870 BRAKING SYSTEM Type Operation Service brakes Mechanical drum brakes (2), one per rear wheel, cable actuated Parking brake Utilizes service brakes, cable actuated TIRES Location Type Size Front (1) Solid 413 X 152 mm (16.25 x 6 in) Rear (2) Solid 406 X 127 mm (16 x 5 in) ec-H20 SYSTEM Item Measure Solution pump 36 Volt DC, 5A, 5.7 LPM (1.5 GPM) open flow, 45 psi bypass setting Solution flow rate 1.67 LPM (0.44 GPM) - Low (optional)* 2.35 LPM (0.62 GPM) - Low (standard) 3.18 LPM (0.84 GPM) - Low (optional)* 3.80 LPM (1.00 GPM) - High
(Tennant 7300 industrial rider scrubber only 196 hrs was posted and is owned by: Helena Atkins) |
HAtkins@chicagopartsnetwork.com (Helena Atkins) for more information.
