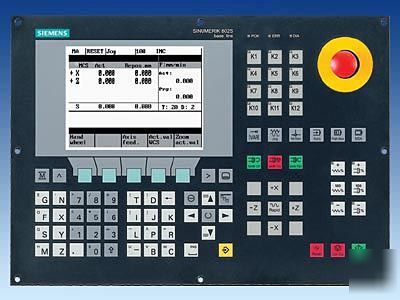

a) 1 controller: 6FC5500-0AA00-1AA0 Available language: Deutsch, English, fran ais, italiano, espa ol, polski, T rk e, , For 3.5Nm, 6Nm, 9Nm, 12Nm Step Motor Input Voltage 85VAC, +20%, -30% h) Two Step Motor, any two motors from the following list: Siemens provide 12 months warranty for the controller, any quality problem, you can get the help from local Siemens. Official Website of Siemens: https://www.automation.siemens.com/mc/mc-sol/en/7aab0fee-045e-40fe-9b52-23775e507830/index.aspx The SINUMERIK 802S base line is a CNC control that was developed for operation with up to 3 stepper drives and one analog spindle. The target market is that of turning and milling machines in the low-end performance range that place correspondingly low demands on the drive technology. This allows stepper motor technology to be used with all the advantages of its simple design and good accuracy and ruggedness. The "manual machine" user interface allows you to operate a turning machine as either a CNC machine or a conventional (cycle) machine. * Up to 3 axes for stepper drive and one analog spindle (without C-axis) * Analog spindle through 10 V interface * Turning or milling are freely selectable * 48 digital inputs and 16 digital outputs 0.5 A, Can be expanded by one module with 16 digital inputs and 16 digital outputs * Sample program and PLC templates * "Manual machine" user interface (can be loaded as second user interface for Turning function) * Very compact mounting dimensions * Easy operation thanks to DIN programming * High reliability thanks to operator panel mounting, * Compact control comprising of CNC, PLC, MCP and I/O section * Complete delivery with CNC, Toolbox and logbook * All tools are included in the scope of supply * Very cost-effective drive technology using stepper motors * Maintenance-free: Without battery and fan (Retrofit kit: siemens sinumerik 802S bl & step motor was posted and is owned by: Valeria Meyer) |
v.meyer@chicagopartsnetwork.com (Valeria Meyer) for more information.
