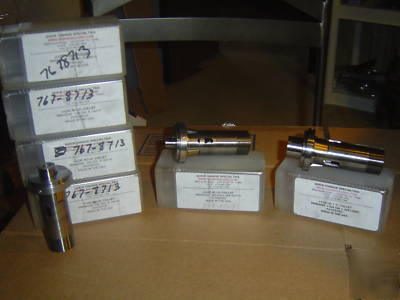

4- 5C BM445556 .742 DIA. X .344 W. 1- 5C BM445552 .582 DIA. X .406 W. 1- 5C BM450041 1.026 DIA. X .625 W. THE ONE PIECE COLLET BODY IS THREADED TO THE MACHINE SPINDLE DRAW TUBE THE PRESSURE SEGMENTS EXTEND THROUGH THE COLLET BODY FROM THE EXPANSION PLUG TO THE STANDARD COLLET SPINDLE ADAPTER. AS THE DRAWTUBE IS ACTIVATED THE PRESSURE SEGMENTS MAKE CONTACT WITH THE SPINDLE ADAPTER, THE SEGMENTS AND EXPANSION PLUG STOP MOVING AND BECOME STATIONARY. THE COLLET BODY CONTINUES TO SLIDE BACK, MOVED BY THE DRAWTUBE , AGAINST THE STATIONARY EXPANSION PLUG, FORCING THE SPLIT PORTION OF THE COLLET BODY TO EXPAND TO MAKE CONTACT WITH THE WORK PART I . D. THE WORK PART IS SUPPORTED ALONG THE ENTIRE LENGTH OF THE HOLDING SURFACE, INSURING MAXIMUM RIGIDITY. NOTE: THE PRESSURE SEGMENTS AND EXPANSION PLUG ARE TITANIUM NITRIDE COATED TO INSURE LONG LIFE. CONCENTRICITY IS GUARANTEED TO .0005 T.I.R. OR BETTER. ITEM MUST BE PAYED IN FULL WITHIN 7 DAYS OF SALE OR ITEM WILL BE RE-LISTED. (Lot of 6 j-loc i.d. 1 piece turning collets was posted and is owned by: Terry Ryan) |
