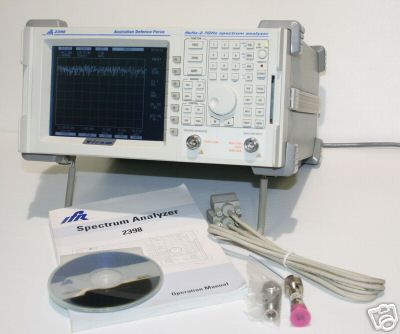

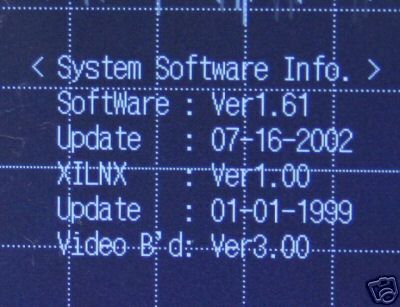

Cash Converters Malaga (Perth WA) has been operating since 1990 and is part of the worlds largest second-hand goods chain. This is an ex-military is sold with a works on arrival warranty. It powers up and passes all its start up calibration tests (Yig Cal, Span, Level, Log, RBW) Software version is 1.61 and the unit includes the IFR Easyspan V3.4.0 Program Software disk. The unit has a PCMCIA card slot. A JFW 50RF-010 fuse adapter and Inmet 8046 adapter is included. • 9 kHz to 2.7 GHz fully synthesized frequency range • 8.2 kg (18 lb): Lightweight, rugged and portable • 300 Hz minimum resolution bandwidth • Wide input range +26 to –105 dBm • Full range Tracking Generator Option • EMC measurement capability The 2398 Spectrum Analyzer is another in the series of quality spectrum analyzers from IFR. It provides exceptional performance in a lightweight, portable unit. With a fully synthesized local oscillator system, the 2398 produces highly accurate frequency measurements. The standard 1 Hz frequency counter gives high resolution measurements of any signal above –70 dBm. Weighing only 8.2 kg (18 lb), the 2398 is one of the lightest spectrum analyzers available. This allows measurements to be made in the lab or in the field on a variety of wireless test, troubleshooting or installation applications. An optional AC/DC power supply or external battery allows the analyzer to be used in remote locations. DC operation is possible from anywhere between +13 v to +21 v DC. The integral "window" or "split screen" feature allows the analyzer to view a signal in the upper zone and an entirely different signal and setup in the lower zone. This special capability allows interfering signals to be tracked, an application that is becoming more prevalent in cellular CDMA and TDMA systems. The 2398 offers phase noise of –90 dBc/Hz at 10 kHz offset for determining the spectral purity of modules or systems. A standard AM and FM demodulator allows full testing and troubleshooting of a wide range of wireless radio systems and repeaters. An internal speaker and a headphone connector are provided Information Link: http:// /products/gentest/specanalyzers/datasheets/2398.pdf Feel free to contact Nevan on 0419-916836 for any further enquiries. We are an established and licensed Secondhand Dealer and pride ourselves on our service. Should you feel that your item has been misrepresented, contact us immediately and we will resolve the situation to mutual satisfaction. (Ifr 2398 spectrum analyzer + tracking generator was posted and is owned by: Rachel Spence) |
rachel_spence@chicagopartsnetwork.com (Rachel Spence) for more information.
