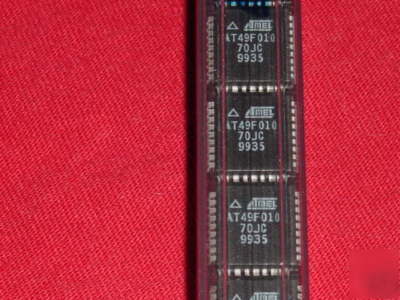

The following item has just been added to our store in a larger qty. This item is for 11 pcs. only! Check our store for larger qty and 1000's of other components! Check out my other items! <-Click here! "If this is not the qty you are looking for, let us know and we will make the qty for you!" 1-Megabit 128K x 8 5-volt Only CMOS Flash Memory Fast Read Access Time - 45 ns Internal Program Control and Timer 8K bytes Boot Block With Lockout Fast Erase Cycle Time - 10 seconds Byte By Byte Programming - 10 ms/Byte Hardware Data Protection DATA Polling For End Of Program Detection Low Power Dissipation mA CMOS Standby Current Typical 10,000 Write Cycles The AT49F010/HF010 are 5-volt-only in-system programmable and erasable Flash Memories. Their 1-megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel s advanced nonvolatile CMOS technology, the devices offer access times to 45 ns (HF version) with a power dissipation of just 165 mW over the commercial temperature range. When the device is deselected, the CMOS standby To allow for simple in-system reprogrammability, the AT49F010/HF010 does not require high input voltages for programming. Five-volt-only commands determine the read and programming operation of the device. Reading data out of the device is similar to reading from an EPROM. Reprogramming the AT49F010/HF010 is performed by erasing the entire 1 megabit of memory and then programming on a byte by byte basis. The byte programming time is a fast 50 ms. The end of a program cycle can be optionally detected by the DATA polling feature. Once the end of a byte pro- (11 pcs. atmel# AT49F010-70JC, 1MB 128K x 8 5-volt only was posted and is owned by: Kirk Porter) |
kirk.porter@chicagopartsnetwork.com (Kirk Porter) for more information.
