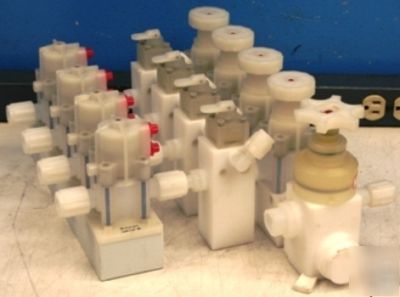

Furon / Saint Gobain CDV2-F88NC and SMDV-FF16M-L-P Valve Assembly w/ Manifolds Furon CDV-1000 Compact Diaphragm Valve Pneumatically Actuated 2-Way (1/2 Orifice) w/ Furon CDV Manifold $226.34 each (6 week lead time) Furon SMDVM 1 Manual Actuated 2-Way Valve w/ SMDV Manifold * Superior MTBF (Mean Time Before Failure) * Injection-Molded, ultra high-purity, PFA-Wetted flow path with virgin PTFE diaphragm * Leak detection capability * Visual position indication with provision for fiber optic position sensor * High back-pressure capability * Assembled and double-bagged in a Class 100 cleanroom * Patiented diaphragm technology * Super type PillarFitting available * Operates to millions of cycles * Compatible with wide variety of systems * Meets the semiconductor industry s ultra high purity chemical requirements * Uniform modular design ideally suited for customized manifold configurations * Suitable for high back-pressure applications * No hold-up volume, complete drain down * Pneumatically actuated valve * Designed for use in the delivery of high purity chemical in corrosive semiconductor applications * Ideal for applications which require both a high Cv factor and minimum footprint * End Connection: Flare Grip II * Ambient operating temperature: 32oF to 120oF (0oC to 50oC) * Media operating temperature: 41oF to 180oF (5oC to 82oC) * Pilot pressure: 60 PSIG min/100 PSIG max * Media operating pressure: 90 PSIG at room temperature * Maximum back pressure: PSIG * Cv flow factor 3.0 with 1/2 PT port connections * Vacuum capability to 27 Hg CDV Manifold Product Overview: CDV Manifold Features / Benefits: * Compact design means space-efficient footprint * Maintenance free operation * Reduces potential leak points by over 40% * Universal fittings offer additional design flexibility * High flow factor, Cv 15 (NC port) * 100% PFA HP and Virgin PTFE wetted flow path * Patented rolling diaphragm technology * Visual position indicator standard on manual and pneumatic versions * Quick-release, non-metallic 8-position mounting base * Non-gender, close coupled space saver fittings * 2-Way Valve available in 3-port and 4-port configurations * Assembled, tested and double-bagged in a class 100 cleanroom * 100 PSIG maximum forward pressure @ 72oF (22oC) * 100 PSIG maximum back pressure @ 72oF (22oC) * Media operating temperature 40oF to 203oF (5oC to 95oC) * Maximum ambient temperature 150oF (65oC) * Pilot air actuation pressure 60 90 PSIG * Normally Closed port (Cv) 15.0 * Optional 4th port (Cv) 19.0 (Furon CDV2-F88NC & smdv-FF16M-l-p valve assy w/ manifol was posted and is owned by: Angie Huber) |
angiehuber@chicagopartsnetwork.com (Angie Huber)
for more information.
