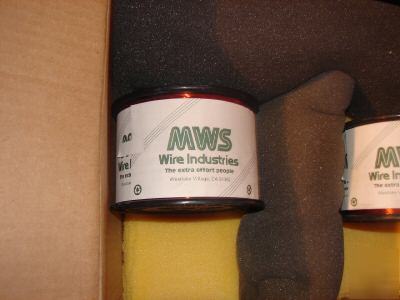

( S = Single build - H = Heavy build - T = Triple build - Q = Quadruple build ) Non-standard insulation builds available upon request. Insulation Type: Polyester A/I Topcoat Federal Specification: JW1177/14 Polyester-amide-imide magnet wire is a two part insulation consisting of a modified polyester basecoat with a super-imposed amide-imide outer coating. This wire exhibits exceptional windability, heat shock resistance, and ability to withstand overloads. Chemical resistance to most solvents and insulating varnishes is extremely good. It is not softened by refrigerants and extractions are essentially zero. DCR based on resistivity of 10.371 ohms per circular mil foot @ 20°C ( 100%IACS Conductivity) Values listed below are derived from the NEMA MW1000-1997 Standard or MWS Wire Industries internal inspection criteria (New 12.0 ibs spool mws awg 26 staih copper magnet wire was posted and is owned by: Kristin Wilkins) |
KristinWilkins@chicagopartsnetwork.com (Kristin Wilkins) for more information.
