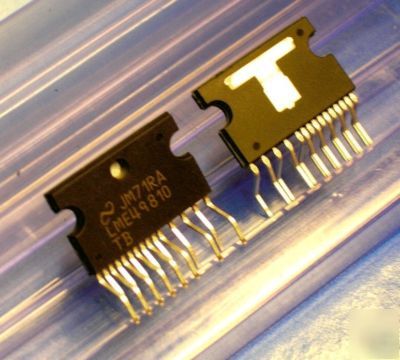

High Fidelity 200V Audio Power Amp Driver IC. Power Amp building block, requires only output stage transistors to complete a low-distortion low-noise audio amplifier. Resulting amplifiers have scaleable output power, and can deliver over 300W per channel, single-ended, into 8 ohms with 10%25 supply rail headroom and 20%25 rail regulation at +/- 100V rails. 200V supply ( +/- 100V rails ), 0.0007%25 THD+N, 110dB PSRR PCB copper and layout pattern for above reference design is in Datasheet (LME49810 dual hifi audio power amplifier driver 200V X2 was posted and is owned by: Lucy Bentley) |
Lucy.Bentley@chicagopartsnetwork.com (Lucy Bentley)
for more information.
