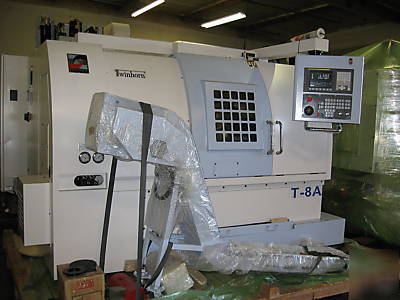

Twinhorn t-8A cnc lathe with fanuc oi-tc


Twinhorn t-8A cnc lathe with fanuc oi-tc
Fanuc Oi-TC / 320 Meters Memory Fanuc 25HP P30 Spindle Motor

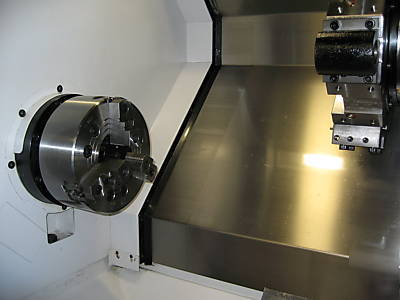

AC Digital Servo & Spindle Drivers 10 3 Jaw Hydraulic Chuck

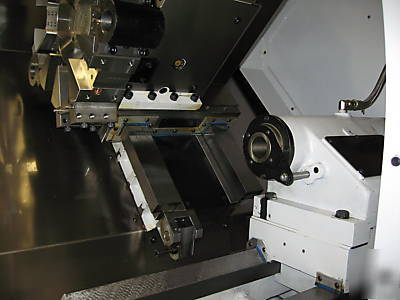

10 Station Servo Driven Turret Spindle Speed 3500 RPM
Harden & Ground Steel Box Ways Programmable Tailstock Quill
Travel Z Axis - 25.60 (650mm)
Swing Over Bed - 21.65 (550mm)
Maximum Turning Diameter x Full Length - 13.78 x 25.59 (350mm x 650mm)
Spindle Center Height - 37.40 (950mm)
Spindle Motor - FANUC AC Spindle Motor
Servo Drive Motor X & Z Axis - Fanuc Motor
Turret Tool Disk Diameter - 12.52 (318mm)
Turning Tool Shank Size - 1.00
Boring Bar Holder Size - 1.50
Tailstock Quill Traverse - 4.92 (125mm)
Tailstock Quill Diameter - 3.74 (95mm)
Tailstock Quill Taper - M.T. 5
Floor Space - 78.74 x139.76 x77.17 (2000mmx3550mmx1960mm)
Machine Weight - 11,000 lb (5000 kg)
(Twinhorn t-8A cnc lathe with fanuc oi-tc was posted and is owned by: Marcia Patel)
