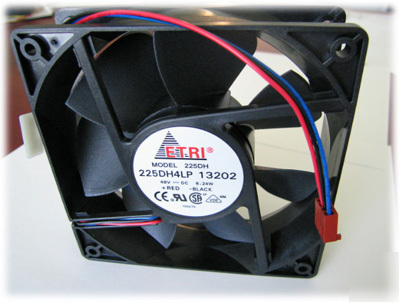

10 Pack NEW Etri Brushless DC fan 48 Volt, runs 38v to 56vdc * Size: 120mm x 38mm (4.72in x 1.50in) * Nominal Operating Voltage: 38 - 56vdc * More pictures available Etri brushless DC fan Voltage Range 38.0 to 56.0 VDC Input Current 0.13 A (0.20 A max) Input Power 6.24 Watts (9.60 max) Max air pressure 0.248 inches H20 Insulation resistance 10 MegOhm @500 VDC between frame and (+) terminal Dielectric strength 5 mA leakage @500 VAC, between frame and (+) terminal Lead wires UL1007 AWG 24, 300mm Life expectancy 50,000 hours continuous operation @ 25 deg C, Bearing ball bearings, top and Airflow direction air intake over impeller Housing material PBT plastic-30% glass fiber UL 94V-0 Impeller PBT plastic-20% glass fiber UL 94V-0 Noise level—41.30 dB A ( max 44.0). Measured in fully anechoic chamber in a “Free air†pressure condition. Microphone is 1 meter away on the intake side of Storage temperature -40 to +75 deg. C Drop test one drop ea, 3 faces 30 cm height onto 10mm thick wooden Shock test 45 g peak acceleration duration-11 ms Vibration test x,y,z direction, 1 hour Frequency—10-55-10 Hz, amplitude— Locked rotor impedance protected 72 hrs @ rated voltage Polarity protected will withstand pos and neg Auto restart automatic restart by timer locked rotor condition * Seller is not responsible for service transit time. Transit times are provided by the carrier, exclude weekends and holidays, and may vary with package, origin, local custom and destination, particularly during peak periods Free selling management from ChannelMAX.Net (New 10PAK etri brushless dc fan 48VOLT, runs 38V- 56V was posted and is owned by: Lenore Cruz) |
