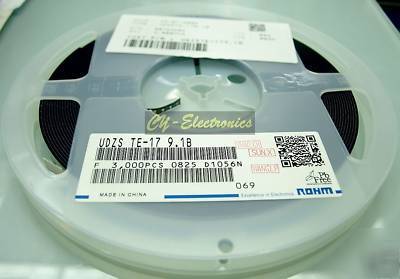

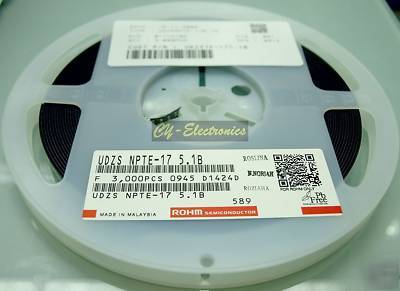

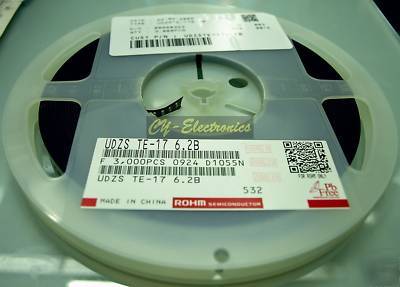

Type: UDZS NPTE-17 5.1B, Zener Diode or UDZS TE-17 6.2B, Zener Diode or UDZS TE-17 9.1B, Zener Diode 1) Compact, 2-pin mini-mold type for 3) Can be mounted automatically, Storage temperature Tstg -55 to +150 Operating temperature Topr -55 to +150 Symbol (UDZS NPTE-17 5.1B, Zener Diode) Zener voltage : Vz(V) - Min.: 4.980 , Max.: 5.200, Iz(Ma): 5.0 Operating resistance: Zz( ) Max.:80 , Iz(MA):5.0 Rising operataing resistance: Zz( ): MAX.:500, Iz(MA): 0.5 Reverse current IR (Ua)) Max.: 2.0, VR(V):1.5 Symbol (UDZS TE-17 6.2B, Zener Diode) Zener voltage : Vz(V) - Min.: 6.060 , Max.: 6.330, Iz(Ma): 5.0 Operating resistance: Zz( ) Max.:60 , Iz(MA):5.0 Rising operataing resistance: Zz( ): MAX.:100, Iz(MA): 0.5 Reverse current IR (Ua)) Max.: 1.0, VR(V):3.0 Symbol (UDZS TE-17 9.1B, Zener Diode) Zener voltage : Vz(V) - Min.: 8.850 , Max.: 9.230, Iz(Ma): 5.0 Operating resistance: Zz( ) Max.: 30 , Iz(MA):5.0 Rising operataing resistance: Zz( ): MAX.: 60, Iz(MA): 0.5 Reverse current IR (Ua)) Max.: 0.5, VR(V): 6.0 (10 pcs UDZS5.1B UDZS6.2B udzs 9.1B zener diode rohm was posted and is owned by: Tabitha Noble) |
tabithanoble@chicagopartsnetwork.com (Tabitha Noble) for more information.
