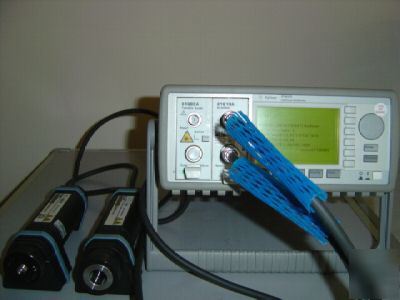

Agilent 8163A Lightwave Multimeter updated with latest version Firmware, with Tunable Laser 81689A, Optical Head Interface 81618A, Brand New Optical Power Sensor 81624A Click on pictures to see large view 1. HP Agilent 81689A Tunable Laser Specially designed for the C-Band Saturating optical amplifiers for dense-WDM transmission systems Configuring mutli-channel test beds for DWDM transmission systems Continuous sweep through full wavelength range Wavelength range: 1525nm - 1570nm Power stability: ±0.03dB over 1 hour at constant temp 2. Optical Head Interface 81618A Power Sensor Head interface for 8162XX Series Power Sensors heads. 3. Brand NEW Optical Head 81624A 800-1700nm Display Resolution: 0.001 dBm. 100 pW Applicable Fiber Type: Parallel beam, 9/125 µm to 100/140 µm, NA < 0.3 6. Agilent 8163A Multimeter w/ Latest version Firmware, Guranteed to work with all plug-ins. The 8163A is a high-performance optical multimeter for the characterization and evaluation of optical components. Its modular format makes it flexible enough to meet changing needs when measuring optical power, power loss, or return loss for single or multi-mode components. The 8163A mainframe has two slim module slots. The system can host up to two front-loadable modules, of any combination of the following types: • Compact Tunable Laser Modules • Fixed wavelength Laser Sources • Power Sensors, both Dual and Single • Interface Modules for Optical Heads The front-loadable module slots also support all modules designed for the HP 8153A Lightwave Multimeter. * Graphical Display, 190 x 300 pixels * Resolution: .0001dB/dBm, 0.01pW to 10pW * Trigger: True Synchronous on all Channels * Supports 816xxx and 815xxx Modules 0.0001dB/dBm, 0.01pW to 10pW up to 6 1/2 digits (user definable) Graphical display 190x300 points visible 4000 measurement results / channel (remote 12000) True synchronous on all channels Selectable Data Total Acquisition Time Note: Picture Shows 81619A Dual Interface, where as offered is 81618A, Photodetector adapters not included. ( agilent 8163A tunable laser 81689A, 81618A & 81624A was posted and is owned by: Jane Collier) |
Jane-collier@chicagopartsnetwork.com (Jane Collier) for more information.
