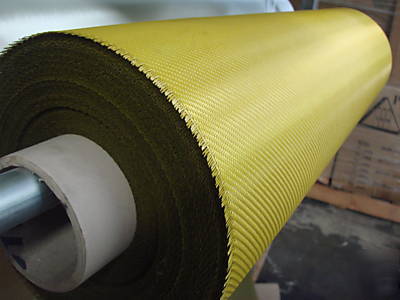

(ECG25 1/0, 11.0 mils (.11 mm Thickness) REQUEST AN INVOICE TO DETERMINE COST SAVINGS PLACE CURSOR ON THE PICTURE TO PAUSE OR PLAY Purchase one square yard or multiple continuous yards THIS FABRIC WILL BE ROLLED UNTO A CARDBOARD CORE AND HEAVY OVERWRAP REGARDLESS OF LENGHT Please request for an invoice if purchasing mutiple yards We offer a significant discount for multiple yard purchase 3 feet length by 31.5 inches wide per unit Texalium is an innovative fabric developed by Hexcel with a proprietary finish and a thin coating of aluminum on the surface of the fabric. It is a very unique and new hybrid utilizing a new fabric called Hexcel Texalium. It is a high-performance fiberglass twill weave coated with 99.99% pure aluminum that is 200 Angstroms thick, (1 billionth of a meter). It has a very reflective silver color on one side and a yellow gold color on the other. The silver color is from the aluminum coating on the fiberglass. Yellow color on one side and silver color on the opposite side It is not as stiff as carbon but is stronger than E-Glass. This is the most common fiberglass used in the composite industry for cosmetic applications. It is a very good material to work with and has great structural integrity for its price. E-Glass is not as stiff or strong as Carbon Texalium but works well if you are on a budget impregnated fabric produces a highly reflective surface, which can be used to achieve a high tech appearance in composites at a much lower cost. 52 x 17 yarns/inch Warp x Fill 9.0 millimeters / Laminate, 50% Vf OUR PHOTO SHARING SITE CAN BE VIEWED AT: Hundreds of posted pictures from many other applications with our MAX EPOXY SYSTEM Proportioning the correct amount is important to insure the cured properties performance of the resin system. The container in which the epoxy and curing agent is mixed in, must withstand the tenacity of the chemical and must be free of contamination. The plastic mixing tubs are made from High Density Polyethylene (HDPE) and it comes with air tight lids which makes it an excellent temporary storage container. Our MAX EPOXY MIXING KIT comes with 5 pairs of powder free Latex Gloves to protect the user from direct contact with the epoxy resin system. For All Your Composite Fabric Needs We Have Just Acquired Thousands Of Yards Aluminum and Phenolic Honeycomb Cores Factory woven by one of the largest weavers and producers of composite fabrics for aerospace, marine, electronic and structural composite materials. Other Fabric Weave Types And Finishing Available Please inquiry for volume discount. PLEASE VIEW THE FOLLOWING VIDEO PRESENTATION BEFORE MIXING THE RESIN SYSTEM. ALTHOUGH THE FEATURED EPOXY RESIN SYSTEM IS DIFFERENT THAN THE MAX HTE RESIN SYSTEM ,THE GENERAL TECHNIQUE AND PROPER MIXING PROCEDURE IS APPLICABLE. This video demonstrates the best technique of fabricating fiberglass or carbon fiber laminate using a dry lay-up process. MECHANICAL PERFORMANCE AND ANALYSISWhen designing a composite part that will involve the use of any type of polymer resin,there are many aspects that must be taken into consideration to insure its efficacy during use. Design, material selection, fabricating process and other implementation parameters must be carefully considered to insure favorable results. What is impact testing?Impact testing is one of the most revealing test methods that demonstrate a material's ability to resist and withstand a high-rate of pressure loading.Its behavior during and after the impact can define its maximum mechanical property and conditional limits upon its destruction. To answer this question, one must determine the load or type of stress that the resin must endure during the life of the fabricated part.Through analysis of its resistance and and conclusively its ultimate mechanical performance pass the point of destruction, one can determine and establish parameters and designs that will involve the use of an epoxy resin as an, adhesive, coating or ultimately an integral part of the synergy of a composite. Why is Impact Testing Important?The impact resistance of an object provides the ultimate measure of its resistance to its definitive destruction.Governed by the many laws and dynamics of physics, a skilled chemist or materials engineer can determine the design equilibrium and ultimate performance by careful analysis of the material s disassociation and the manner of its destruction.With this knowledge, other aspects of mechanical performance can be accurately derived and through skilful engineering one can determine:The impact energies the part can be expected to see in its lifetime,The type of impact that will deliver that energy, and then select a material that will resist such assaults over the projected life span. MAX CLR IS OUR LINE OF VERY CLEAR AND COLOR STABLE EPOXY SYSTEMSREQUIRING ABSOLUTE WATER CLARITY IMPACT RESISTANCE TEST OFMAX CLR SERIES OF EPOXY SYSTEM VIA FALLING TUP METHODASTM D5628 - 07 Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimens by Means of a Falling Dart (Tup or Falling Mass) SCOPE OF TEST PARAMETERSThis test method covers the determination of the threshold value of impact-failure energy required to crack or break flat, rigid plastic specimens under various specified conditions of an impact from a free-falling dart (tup), based on testing many specimens. The values stated in SI units are to be regarded as the standard.The values in parentheses are for information only.This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. IMPACT TEST VIDEOAdobe Flash Player must be installed in your computer to view the demonstration video.Click on the box if you see a blank screen and a dialog box will open and download the latest version of the Adobe Player AVAILABLE RESIN SYSTEM FOR THIS FABRIC EPOXY SYSTEM FOR MECHANICAL PERFORMANCE MAX BOND THIXOTROPIC IS FORMULATED FOR STRUCTURAL BONDING WERE A NONE SAGGING OR THIXOTROPIC GRADE IS DESIRED FOR VERTICAL OR OVERHEAD BONDING MAX BOND MEDIUM VISCOSITY GRADE PROVIDES THE HIGHEST MECHANICAL PROPERTY AND HAS A THICK BUT FLOWABLE CONSISTENCY MAX BOND LOW VISCOSITY VERSION IS THE THINNEST VERSION OUT OF THE THREE. IT PROVIDES EASE OF USE FASTER FABRIC WET OUT AND A BALANCED MECHANICAL PERFORMANCE This color darkening is mostly caused by thermal oxidation process in which FREE RADICAL compounds are created via thermal energy (heat). Our Epoxy Mixing Kit comes with all the necessary utensils and protective gloves needed for mixing, dispensing or applying any of our (Texalium fiberglass fabric 31.5" wide 2X2 twill weave was posted and is owned by: Doris Hurley) |
d.hurley@chicagopartsnetwork.com (Doris Hurley) for more information.
