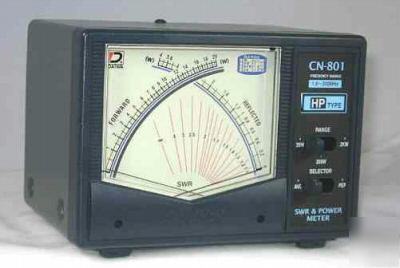

Daiwa CN-801HP HF/VHF In-Line RF Wattmeter Peak/Avearage * Average and Peak Reading RF Wattmeter * Extra Large 4" Meter for Easy Viewing * Power Range Forward 20/200/2kW * Tolerance +/- 10% (at full scale) * SWR Detection Sensitivity 5 W min * Input/Output Impedence 50 OHM * Input/Output Connectors SO-239 * Dimensions Weight 6.25 in x 4.3 in x 4. in 2lbs. 3ozs The CN-801 Series are high quality RF Wattmeters with unique feathures which make tedious measurements of SWR and Power during antenna tests, matching, and tuning of transmitters a very easy task. SWR and Power indicators are installed in a one meter unit. One scale will indicate Foward Power, another scale Refelected Power and the SWR is indicated at the crossing point for the 2 needles. This unique feature makes it possible to read Foward Power, Reflected Power, and SWR all at the same time. Front panel switch allows selection of mulitple power ranges for improved measurment accuracy at any power level. Front panel switch allows selection of Peak Reading (SSB) and Average reading. Internal 12 VDC panel light (connect to an external source for 12 VDC). The attractive design and large easy to read meter will make this RF Wattmeter a perfect addition to your radio shack! More Info About Daiwa Wattmeters (Daiwa cn-801HP hf/vhf rf wattmeter was posted and is owned by: Helena Martinez) |
