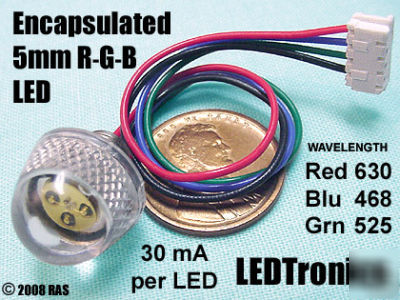

(3) Sunlight Visible Red-Green-Blue wired LED Indicator Assemblies Seperate R,G,B Chips in 5mm Case Ruggedized in Clear Epoxy with Color Coded Harness LEDTRONICS Assembly p/n: PNL-1147 5mm LED Datasheet: DIS-1024-007 (52K PDF) [Just the bare LED without assembly - List: $16.08 each] Rubber O-rings for waterproof mounting are included. * 5mm LED has 3 Independent Chips * Bright 256 Color Full Spectrum * 30 mA max per Chip (90 mA total) * Uses 5/16" nut (nuts NOT included) * O-Ring for waterproof mounting Note: With the right blending of the 3 colors you can also produce white. Optional: DIY removal of protective housing: This assembly was designed specifically as a SCBA (Self Contained Breathing Apparatus) status indicator for firefighters. It had to be rugged and waterproof. And it had to be bright so firefighters could watch each other's air supply in smoke filled rooms. You may not need the large clear epoxy shell. Removing the shell will leave the wired LED intact in the metal bushing. Check the before & after pictures below. We removed the shell by carefully making hacksaw cuts on both sides and then prying the halves apart. The LED is recessed and can be avoided by keeping the cut on top shallow. Do NOT try to dissolve the shell with strong solvents. Solvents may dissolve the LED too. We do not recommend removing the 5mm LED from the metal bushing. Datasheet - DIS-1024-007 (52K PDF) etronic e-tronic hamtronic qba tech 14 day Non-DOA, Good-on-Arrival Guarantee Untested, but NO JUNK or suspect parts PCB parts are thru-hole, NO SMD/SMT Manufacturers may vary from picture This page is best viewed with a screen size of 1024x768. ((3) r-g-b led indicator assemblies (full spectrum) was posted and is owned by: Aurelia Goodman) |
a_goodman@chicagopartsnetwork.com (Aurelia Goodman) for more information.
