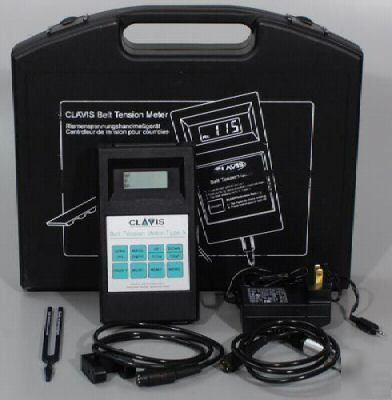

Clavis Type 5 Hand Held Belt Tension Meter (Model ICH-610S Equivalent) Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Clavis and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The Unit's Serial Number Tag Reads: The Unit Comes with the Following Accessories: 3N-New Standard - A replacement for the Type 3 Sensor but with narrower body. General purpose for all belts up to 25 mm wide. Particularly suitable for automotive belt drives. The type 10 cylindrical sensor is a sensor that only needs to be pointed towards one face of the belt. However, its performance in rejecting high levels of background noise is poorer when compared with the standard dual transducer sensors, and therefore it may not be suitable for some measurement situations. The correct tension in a drive belt is essential to maximize the life of the belt and the drive components. Slippage in timing belts due to the tension being too low can have catastrophic consequences. The CLAVIS hand held Beltmeter introduced in 1988 is a significant advance by applying acoustic principles to belt tension measurements. The meter produces readings which accurately reflect the tension in the belt consistently without any operator dependence. The device is in use throughout the world, both as a production tool for accurate belt tension setting, and as a quality control gauge. The CLAVIS belt tension meter is both approved and recommended by all of the major manufacturers of drive belts. The sensor head is a CLAVIS patented design and offers superior performance over any other meter of this type. The Clavis hand held beltmeter can be used for all belt tension gauging applications. It produces readings which accurately reflect the tension in the belt, consistently and without any operator dependence. This device is in use throughout the world, both as a production tool for accurate belt tension setting, and as a quality control gauge of belt tension. The Clavis belt tension meter is both approved and recommended by all of the major manufacturers of drive belts. The equipment consists of a small sensor head which is held across the belt to be measured. The belt is then tapped to induce the belt to vibrate at its natural frequency. This vibrations are detected and the frequency of the vibration is then displayed on the measurement unit. The unit is suitable for measuring tension in all types of power transmission belts, ranging from toothed timing belts, poly-vee belts, and simple vee belts. A general purpose head is supplied, however a range of sensing heads of differing dimensions are available from the factory. The TYPE 5 version of the meter, has a frequency range from 10.0 Hz to 600 Hz, which will cover virtually all belt tension measuring applications. In addition there is a facility to display belt tension in kilogram Force units of measurement. This value is calculated from the belt span and belt mass data, which is entered into the meter. Up to 3 sets of data may be stored in the meter for easy recall. The display may be changed from a Hz to a kgF reading by the press of a single key. Frequency Range: 10.0 - 600 Hz, 1.0 - 999 kgF Accuracy: +/- 1 digit (10-100 Hz), +/- 1% (100-600 Hz) Span Range: 0.001 - 0.999 meters Mass Range: 0.001 - 0.999 kg/metre Battery: Qty 4. AA Batteries needed. For More Pictures Please Click the Following: * Picture 4 - Connections on Bottom * Picture 5 - 250 Hz Tuning Fork * Picture 6 - Type-3 or 5 Sensor (Clavis type 5 hand held belt tension meter w/sensors was posted and is owned by: Matthew Snyder) |
