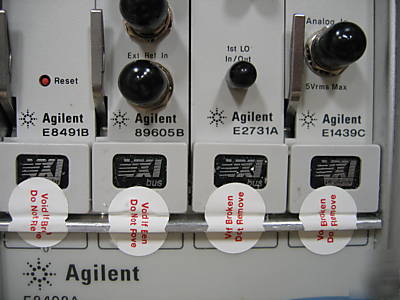

Agilent 89641A Vector Signal Analyzer (VSA), 6 GHZ The Agilent 89641A Vector Signal Analyzer (89641S, 89600S) offers advanced digital signal processing and unique error analysis tools needed troubleshoot and measure the RF and modulation quality of digitally modulated signals. Its flexible demodulation features work equally well on wideband and narrowband signals, proprietary signals and standards based signals. * Key specifications of the Agilent 89641A include: * Modular, pre-configured hardware for VXI-based vector signal analysis * DC to 6 GHz frequency range and 36 MHz of analysis bandwidth * <-157 dBm/Hz sensitivity * Add a second channel for I/Q baseband and RF coverage in one box * DSP-based spectrum, vector, demodulation, and RF-scope analysis tools * Full access to all of the 89600 VSA software signal analysis capabilities * Connects to your PC via IEEE 1394 "Firewire" interface * Customize the 89641A /89641S VSA with different hardware capabilities to meet your measurement needs * Easily substitute a mainframe or add a second channel to a mainframe o Add a second coherent RF channel for MIMO applications or a secondbaseband channel for BBIQ analysis (optional) * Select from three different VXI mainframe sizes: 4-slot, 6-slot, and 13-slot * Add up to 384 MSa of signal capture and playback memory to record signals and transients for later analysis * Use the I+jQ mode of the software to see composite spectrum, constellation diagrams, and more * Gain greater insight with the powerful signal analysis tools of the 89600 VSA software (not included) * High resolution spectrum analysis * Gather the data you need to troubleshoot PHY layer problems * Advanced general purpose and standard-specific modulation analysis options * Extensive suite of time, frequency, and modulation -domain analysis tools for burst analysis * Compatible with more than 30 Agilent signal analyzers, scopes, and logic analyzers WHAT IS INCLUDED WITH THIS UNIT?.... A LOT! (see below) * The following Options are included with this unit: * Option 001: 1.2 Gb Total Memory * Option 200: Basic VSA, no HW connectivity * Option 300: Hardware connectivity * Option 105: Dynamic Link to Eesof ADS/SystemVue * Option AYA: Vector Modulation Analysis * Option B7N: 3G Modulation analysis bundle includes -B7T, -B7U, -B7W, -B7X * Option B7R: WLAN modulation analysis * The following Modules are installed in this unit: * 89605B: Baseband Input Module * E1439C: 95 MSa/s Digitizer with DSP, Memory and 70MHz IF input * E2731A: RF Tuner Module, 20 MHz - 6 GHz * E8408A: C-size VXI mainframe, 4 Slot * E8491B: PC Link to VXI is a C-size, 1-slot * The following Accessories are included with this unit * (2) 1810-0118 Term, 50 Ohm * (1) 5980-1260E E1439 A/B/C/D Data Sheet * (2) 8121-0132 Cable, BNC(m) to BNC(m) * (1) 89600-90067 VSA Site Key Request Form * (1) 89600-90070 Installation Service Guide for Agilent 89600 Series * (1) 89605-61693 Semi-Rigid Cable, SMA M-M, 2.4 cm Wide * (1) 89605-61694 Semi-Rigid Cable w/ Toroid, SMA M-M, 3.6 cm Wide * (1) 89605-6191 Semi-Rigid Cable, SMA M-M, 3.3 cm Wide * (2) Calibration Files for 89605B & E2731A, on 3.5" disk (serialized to unit) * (1) VSA Software Sheets (asset specific) * (1) E2731-61601 Semi-Rigid Cable, M-M, 1.5 cm Wide * (1) E8408-9001 User & Service Manual * (1) E8491-61603 IEEE-1394 Cable * (1) E8491-61613 IEEE-1394 PCI Card Power Adapter Cable * (1) E8491-90093 E8491 IEEE-1394 PC to VXI Update Sheet * (1) E8491-66503 IEEE-1394 PC Card (option 001 for E8491B ) * (1) Dell D610 Refurbished Laptop with Windows XP * (1) Laptop AC Power Adapter * (1) PC Card Firewire Adapter * (1) Agilent 89601A Ver. 11 Software with Agilent Site Key with options installed as noted above in "Options" THIS MODEL IS CURRENTLY AVAILABLE FROM THE MANUFACTURER. IF YOU BOUGHT IT BRAND NEW FROM AGILENT, YOU WILL PAY OVER $120,000.00 This Agilent 89641A w/ 89601A is available for RENTAL - Call (***) 806-6600 to RENT this item. Please email Jim_Horne@chicagopartsnetwork.com with any questions, or call us at: (Agilent 89641A, 89641S, 89600S vector signal analyzer was posted and is owned by: Jim Horne) |
