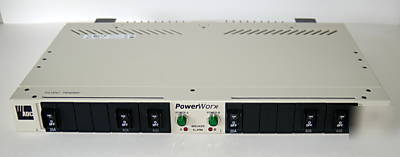

ADC PowerWorx PWX-451MXXXR2R2SSP GMT Series Fuse Panel The PowerWorx Traditional GMT series fuse panel (hereafter called "the GMT panel") provides GMT type fuse protection for telecommunications products used in the central offices, multimedia headends, remote sites, and other locations requiring fused power. All GMT panels have common features. These features include: Input amperage rating of 65 Amps per power bus- Different models may have either one or two buses. Panels havinng two buses are rated for an input amperage of 130 Amps (65 Amps per bus) Self-configurating voltage and polarity capabilities- The GMT panel operates using an input voltage of 24 Vdc (with a range of 21 to 30 Vdc) or 48 Vdc (with a range of 42 to 56 Vdc). Output voltage is the same as the input voltage. High brilliance, field replaceable LEDs- These LEDs may be either of two types, a green power-on indicator or a red fuse alarm indicator. Most models have one of each type of indicator per power bus. One model has only a fuse alarm indicator. The indicators perform the obvious function of indicating when power is present or when a fuse is faulted causing a lossof power in any output of the bus. Sturdy chassis design- GMT panels are constructed of 16-gauge cold rolled steel. Agency approval- GMT panels are comliant with all major standards including UL, NEBS Level 3, Telcordia (Bellcore), NEC 1999, CSZ, IEC, and CE, as indicated on the certification label on each chassis. Sturdy input and output termination- GMT panels provide secure, reliable physical connections for power input and output using two-hole compressing lug or set screw barrel termination for input and screw down or set screw termination for output. Alarm connaction- GMT panels provide external fuse failure relay dry cantacts for audio, video, and remopte alarms. Fuse and voltage labels- All GMT panels caome with a fuse value designation pin holders, fuse designation card and holder, and voltage designation label. Two-post grounding- All GMT panels provide two-two post post termination for chassis grounding. The lugs are spaced so that a two-hole compression lug can be used for termination of a larger wire (up to #2 AWG). > The PwerWorx Traditional GMT series fuse panel (hereafter called "the GMT panel") provides GMT type fuse protection for telecommunications products used in the central offices, multimedia headends, remote sites, and other locations requiring fused po... Click the above link to Bookmark this page (Adc powerworx pwx-451 gmt series fuse panel was posted and is owned by: Michele Lindsey) |
