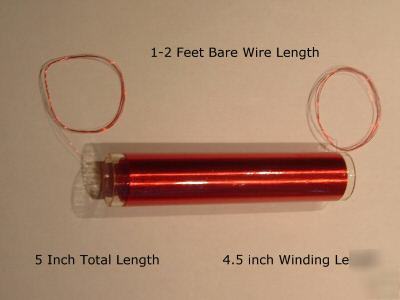

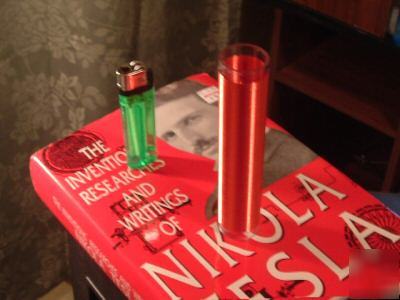

It measures 1 inch by 5 inches and is wound with 33AWG high temperature magnet wire. Approximately 1-2 feet of unwrapped magnet wire is left on each end of the coil (see picture). The secondary form is 1/8th inch thick clear acrylic tube. Acrylic is superior to PVC pipe in many ways; acrylic absorbes less water, and allows for better operation in high frequency environments. The secondary is coated with 3-5 layers of high quality Q-Dope - it offers superior protection to normal polyurethane varnish. Diameter of secondary coil : 1.00in Winding height of secondary coil : 4.50in Wire diameter for secondary coil : 0.007in Spacing between windings : 0.00in Secondary wire length : 168.30ft Approximate resonant frequency : 2469.67kHz Secondary quarter wavelength resonant frequency : 1462.05kHz Secondary self capacitance : 1.99pF Toroid capacitance required to form quarter wavelength coil : 3.69pF Please note these are general specifications, the actual performance specs may vary slightly with each coil. (Tesla coil secondary - high quality - clear acrylic was posted and is owned by: Valerie Koch) |
