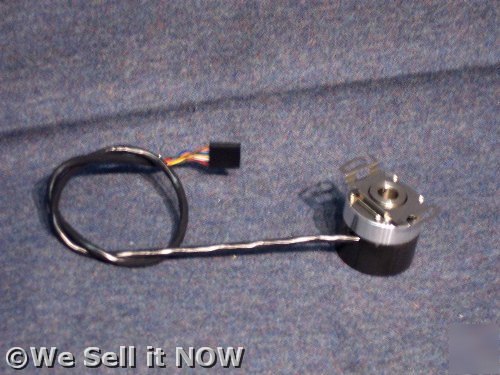

This item for your consideration is a NEW RENCO ROTARY ENCODER #RHS15 If you have any questions about this item, please refer to our inhouse item# 10905 The RHS15 combines state-of-the-art modular technology with an integral bearing system that accommodates large axial and radial shaft movement, while also providing high performance in an affordable package. The RHS15 is small and lightweight, yet TTL compatible with various outputs available and resolutions up to 1250 cycles per revolution. * Robust .060" [1,524mm] chrome-on-glass code disk. * Single LED light source for high reliability. * Differential photo transistor sensor array. * Sealed or shielded bearings. * Flexible mounting plate accommodates large axial movement * Integral cable strain relief. (Subject to change without notice)[Metric measurements in square brackets] Outer Diameter:1.62 inches [41,15mm] Height: 1.55" max [39,37mm] Shaft Dia: 3/16 to 1/2 inch [4,76 to 12,7mm] Weight: 3.75 oz [107g] Slew Speed: 6000 rpm [628 rad/sec] Bore Material: Stainless Steel Base Material: Aluminum Cover Material: Glass filled Polycarbonate Starting Torque: 0.5 oz-in [3.5 X 10E-3 N-M] @ 25°C Bearing Life: 2 billion revolutions (90% life) Output: Square wave two channel quadrature with index (gating options available) Input Power: 5 VDC ±5% Output Format: TI AM26LS31CD or LM2901 Min Edge Separation: 45° (all channels) Freq Response: Up to 200 KHz Operating Temp: -10°C to +100°C Storage Temp: -30°C to +110°C Shock: 50 G's for 11 mSec Vibration: 5 - 2000 Hz @ 10 G's Humidity: 90% relative (non condensing) Range: 16 to 1250 Currently available: 16, 24, 32, 50, 60, 75, 90, 100, 120, 127, 128, 150, 200, 900, 1000, 1024, 1250 HUB SIZE: (shown in inches)[metric] Specify Hub Bore (+.0005/-.0000)[+0,013mm/-0,000mm] Round Cable CA18 Wire No complementary signals available 5 VDC power input TTL compatible (+12V available) Nominal power requirements 75mA We are the exclusive seller of obselete and discontinuted parts from Parker Hannifin Corporation. Most parts are brand new; however you MUST read the description carefully so you will know exactly what you are getting. It has either been discontinued or deemed obsolete by Parker. We have large quantities of some of the items, so if you are interested in more than one please contact us. Please check back often as we will be continuing to list Parker's obsolete and discontinued inventory. ***IF THIS ITEM IS LISTED AS LOCAL PICK UP ONLY AND YOU ARE INTERESTED IN A FREIGHT QUOTE, PLEASE CONTACT US.*** It is important that you give us a chance to solve any problems "PRIOR" to taking action on your own. Pennsylvania Residents will be charged applicable sales tax. WE DO NOT ACCEPT MONEY ORDERS, Please read below. Our system automatically generates messages to you until your item is paid for. If an item is marked with a condition grade, please use the chart below to determine the condition of the item you are interested in. We want you to be completely satisfied with your purchase and we will do what is necessary to meet your needs. Despite our best efforts, there are occasions that a problem may occur with your purchase. We will work with you to make certain that the situation is resolved to your satisfaction within the scope of our policy. Refunds will be processed within 5 to 7 business days of receiving the item. (New renco rotary encoder RHS15 was posted and is owned by: Brandy Kirby) |
