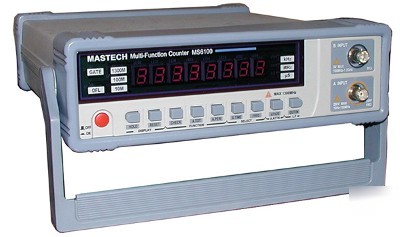

MASTECH NEW MS6100 BENCH FREQUENCY COUNTER DIGITAL HAM MASTECH MS6100 HQ Bench Frequency Counter Dual Channel - 10 Hz - 100 MHz & 100 MHz - 1.3 GHz This is a high quality bench frequency counter and comes with an AC power cable, test cable and instructions. The system is brand new in the original box and comes with an excellent one year warranty. It is manufactured by MASTECH which is one of the world's largest manufacturers of test equipment. The frequency counter has two BNC inputs for the following frequency ranges: 10Hz to 100 MHz and 100 MHz to 1.3 GHz. Additional Sinometer Mastech MS6100 specifications Channel A: 10 Hz to 100 MHz; Resolution: 1/10/100Hz selectable; Channel B: 100MHz to 1,300 MHz: Resolution: 100Hz, 1KHz and 10 KHz selectable. Channel A (Only): 0.1S to 0.1uS (10Hz to 100 MHz), resolution: 0.0us, 0.00uS, 0.000uS selectable. Channel A (Only): 10Hz to 100 MHz, Resolution: 1 count input. The measurement accuracy is ±1 count ± 1 X10 -5 X frequency (Month), ±1 count ± 1 X 10-6 X frequency (minute) TIME BASE ERROR: FREQUENCY: 8MHz LONG TIME STABILITY: ± 1 x 10-5 SHORT TIME STABILITY: ± 5 x 10-6 Size: 12" (L) x 10" (W) x 3" (H) Voltage is 110 or 220 selectable. On the rear panel there is a 10MHz OSC. OUT BNC jack. The counter comes with an AC power cord and a BNC to BNC cable. PO Boxes, APO addresses, PR, VI, Guam, AK or HI is extra. View all my items in my sdGallery (New mastech MS6100 bench frequency counter digital led was posted and is owned by: Sophie Gould) |
s.gould@chicagopartsnetwork.com (Sophie Gould) for more information.
