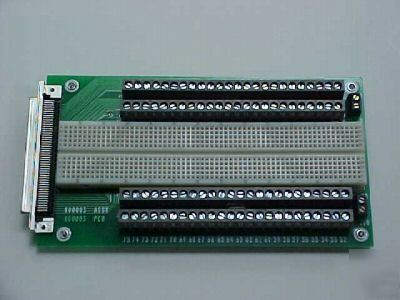

NEW 100 PIN BREAKOUT WITH BREADBOARD Works with NATIONAL INSTRUMENT DEVICES This versitle 100 Pin DAQ can be used as a BREAKOUT or as a PROTOTYPING AREA * 100 SCREW TERMINALS.... ONE FOR EACH PIN ...GREAT FOR INTERFACING TO THOSE 100 PIN CABLES * Mounted on .250 STANDOFFS for TABLETOP mounting * Uses medium small flat blade screwdriver for screw terminals * 100 PIN AMP CONNECTOR IS THE SAME AS THE ONE ON THE SCB-100 AND SC-2056 * Removable solderless proto area has 640 points 2 X 64 X 5 points at .1 spacing 100 PIN AMP CONNECTOR IS THE SAME AS THE ONE ON THE SCB-100 AND SC-2056 Removable solderless proto area has 640 points 2 X 64 X 5 points at .1 spacing GREAT FOR PROTOTYPING LEAD COMPONENTS AND DIPS THESE ARE NEW AND DO NOT HAVE ANY BLOWN TRACES If you need pinout info go to ...........great pinout drawings http://zone.ni.com/devzone/conceptd.nsf/webmain/03F9B658D72FFB3186256E66006EB9E6?opendocument You Can't Beat This Price !!!! Mfg by DAQstuff See our line of DAQ Equipment which includes 50 Pin Breakouts starting at $24.95 68 Pin Adapters starting at $9.95 68 Pin Breakouts starting at $49.95 100 Pin Breakouts and Relay Boards New! 50 Pin & 68 Pin DAQ Breadboard EZ-Connect Systems ( which gives you INSTANT ACCESS to your DAQ Card ) National Instruments DAQ & Labview Equipment available (Scb-100 100 pin breakout w solderless proto area for ni was posted and is owned by: Malinda Mclaughlin) |
M_Mclaughlin@chicagopartsnetwork.com (Malinda Mclaughlin)
for more information.
