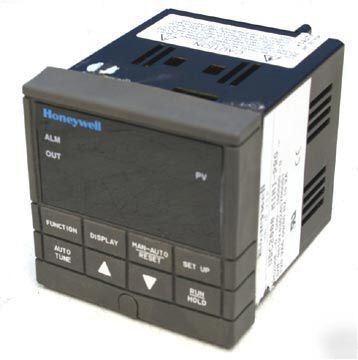

HONEYWELL UDC2000 MINI-PRO UNIVERSAL DIGITAL CONTROLLER (061505505160) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! Honeywell UDC2000 Mini-Pro Universal Digital Controller * Part Number: DC200E-0-000-100000-0 * Serial Number: 9543Y523159700002 * Electrical Requirements: 120 Volts AC, 50/60 Hz, 10 vA * The UDC2000 Mini-Pro is a low cost member of Honeywell’s Leaderline family of microprocessor-based, digital controllers. It monitors and controls temperatures and other variables in applications such as environmental chambers, plastic processing machines, furnaces and ovens and packaging machinery. * The Mini-Pro is a low cost alternative to more expensive controllers without compromising quality or performance. It can be used to control variables such as temperature, pressure, flow, level, and rotation. A limit control model is also available. * The Mini-Pro has a high degree of functionality. A dedicated configuration display provides multi-language prompts providing unmatched operating simplicity. Programmed sequences of displays assure quick and accurate entry of all configurable parameters. Simple keystrokes let you change the operating parameters to meet your process control needs. * Low-Cost: This Mini-Pro meets Honeywell’s high performance standards at a surprisingly affordable price. * Easy to Configure: A bright dedicated configuration display provides straightforward Multilanguage prompts that allow easy set-up with minimum time and effort. * Universal Inputs: Accepts 10 thermocouple types, RTDs, Radiamatics RH, mA, mV or voltage inputs through simple configuration. * Accutune II: This standard feature provides a new, truly plug and play tuning algorithm, which will, at the touch of a button, accurately identify and tune any process including deadtime and integrating processes . This speeds-up and simplifies startup plus allows retuning at any set-point. * Fuzzy Logic: This new feature uses fuzzy logic to suppress process variable overshoot which can result from set-point changes or externally induced process disturbance. It operates independently from Accutune Tuning. It does not change the PID constants, but temporarily modifies the internal controller response to suppress overshoot. This allows more aggressive tuning to co-exist with smooth process variable response. It can be enabled or disabled depending on the application or the control criteria. * UL Recognized Component: This is a standard feature for all models for regulatory use only. * CE Mark: Conformity with 73/23/EEC, Low Voltage Directive and 89/336/EEC, the EMC Directive. * Dual Set-points: Simple pushbutton selection allows quick switchover from primary to alternate set-point with minimal operator confusion. * Limit Control: This model provides a latching relay which is activated whenever the PV goes above (High Limit) or below (Low Limit) a preset set-point value. An alarm message will be displayed when the output is activated. Reset is through a key on the front of the controller or an optional external switch. Normal display can be configured to indicate process variable or set-point. Only T/C or RTD inputs are available on Limit models. FM approval is available. * Moisture Resistant Front Panel: Capable of meeting NEMA 3 and IEC IP65 (i.e. hose down) requirements. * Diagnostic/Failsafe Outputs: Continuous diagnostic routines detect failure modes, trigger a failsafe output value and identify the failure to minimize troubleshooting time. * Highly Secure: Non-volatile EEPROM memory assures data integrity during loss of power. Keyboard security prevents accidental or unauthorized changes to the display. * High Noise Immunity: The Mini-Pro is designed to provide reliable, error- free performance in industrial environments that often affect highly noise-sensitive digital equipment. (Honeywell UDC2000 mini-pro universal digital controller was posted and is owned by: Lorrie Noel) |
