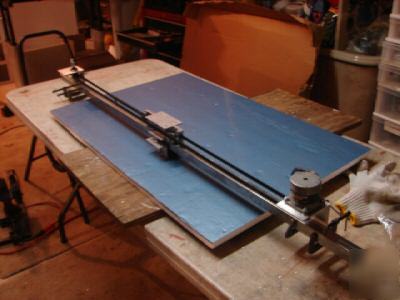

WITH THREE OF THESE AND A FEW OTHER PARTS, YOU CAN BUILD YOUR OWN 4' X 4' CNC ROUTER FOR ABOUT $1000. SEE PICTURES OF ONE IN THE LINKS BELOW. VIEW MANY MORE ACTUATORS AND LENGTHS BY CLICKING ON "VIEW SELLERS STORE", THEN CLICK ON "ACTUATORS" Linear Actuator with 48" of trolley travel, and a 2-1/4" by 4" mounting plate with 4 mounting holes 1/4-20 threads. This actuator mounts on each end with a 3/8" through hole drilled through the one inch square steel tubing main frame top to bottom. This actuator can be driven by any NEMA 23 stepper motor (not included);driving a 0.20XL timing belt with a 15 tooth timing pulley mounted to the motor(pulley and belt are included). Overall dimension outside to outside is 60"; top to bottom 7"; width 5". The actuator trolley rides on six flanged ball bearing wheels. Note in the first picture, our 4 axis driver board in our aluminum enclosure with power supply in the foreground. Note the Oval Sign he made with this machine on the right front corner of the table. https://home.comcast.net/~brenthub/pdf_files/BillsRouter1.pdf No No No the bottle is oil stain for the signs when they are done. https://home.comcast.net/~brenthub/pdf_files/BillsRouter2.pdf https://home.comcast.net/~brenthub/pdf_files/BillsRouter3.pdf This last file is the finished sign tha was being made in these pictures. https://home.comcast.net/~brenthub/pdf_files/SignFromBillsRouter.pdf (Cnc router linear actuator 48" slide stepper motor was posted and is owned by: Aurelia Bartlett) |
Aurelia.Bartlett@chicagopartsnetwork.com (Aurelia Bartlett) for more information.
