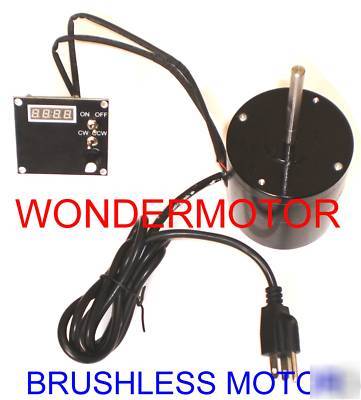

115V AC 1/8 hp ECM Brushless Electric Motor Variable Speed Drive Reversible This is a compact Electronically Commutated Motor with a variable speed control panel that displays the speed of the motor. The motor takes a regular 115VAC input from a regular appliance outlet. Due to properties of its permanent magnet rotor, this motor is able to generate great torque at low speed. Controller: On/Off switch, variable speed knob, CW/CCW switch, RPM display, 115vac power cord in length of 54 inches(1372mm) Motor: No load@5500RPM; 75W@0.17N-m(1.6 in-lb)@4000RPM; 100W@0.377N-m(3.4 in-lb)@2500RPM. A torque curve can be plotted by simply using the 3 data points provided. Shaft is 8mm in diameter with flat and 77.5mm in length. Face mount design with 2 threaded Metric holes at front. Diameter of mounting hole pattern is 72.6mm wide. Cylindrical portion of the motor has a diameter of 85mm and an axial length of 91mm. Connection between motor and the control panel is 12 inch(305mm) long. (1/8HP brushless motor 115V ac variable speed drive ecm was posted and is owned by: Kris Nichols) |
