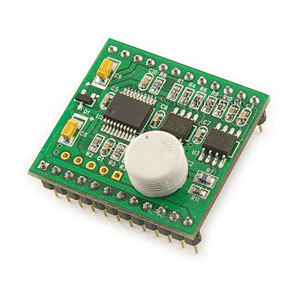

Temperature and Relative Humidity Sensor Module A perfect PIC16F690-HS1101-based humidity and temperature module that can be used in many applications to meausre temperature and relative humidity. Humidity accuracy (10 to 95 % RH) Temperature coefficient (0 to 60 C ) Response time (33 to 76 % RH, still air @ 63%) Deviation to typical response curve (10% to 90% RH) Recovery time after 150 hours of condensation 1. Processing chip: PIC16F690 2. Humidity measuring chip: HS1101 3. Size: 30(mm)X29(mm)/1.22(inch) X 1.14(inch) 4. Wide range relative humidity measuring 7. Analog: relative humidity & temperature voltage signal linear output 8. Digital: UART half duplex, SPI slave mode 9. DIP-like packaging, which facilitates system integration 11. Pins are plated with 3 m thick gold which can effectively prevent abrasion and corrosion. 1. Humidity & temperature measuring in industrial production 2. Warehouse environment surveillance 3. Humidity & temperature measuring in vegetable greenhouse 5. Books and archives storage in library 8. Automation & process control 9. Building control and HVAC Temperature and Relative Humidity Sensor Module x1 Go to Download Center for manual, driver or application (Temperature & relative humidity sensor module HS1101 was posted and is owned by: Katelyn Ford) |
