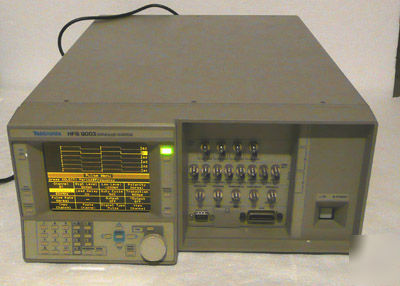

Tektronix HFS9003 630 MHz Programmable Stimulus System The Tektronix HFS9003 digital stimulus system mainframe has the features of a high performance pulse generator and added complete data generation capabilities as well. With this unit the need for a switch matrix as well as a separate power supply is gone. The HFS9003 has the ability to produce the DC levels needed to drive logic lines directly. Finally, all these capabilities are present on every pin simultaneously, so you get extremely flexible formatting. Now you can set up a complete stimulus system in minutes, rather than hours or days, and test products more thoroughly throughout the development cycle. You can build a stimulus system with from four to 36 channels in one mainframe, and 640 or more channels across multiple phase-locked mainframes. The HFS9003 can include the 4-Channel HFS9DG1 and HFS9DG2 Data Time Generator cards in any combination. * Complete Stimulus Setup in Just Minutes * Specify Data and Timing on Every Pin * Up to 630 MHz Repetition Rate * Fully Digital Implementation * Multi-channel Architecture * Up to 640 or More Phase-locked Channels * Precision Channel-to-channel Timing Alignment * GPIB (IEEE 488) Programmable * Maximum Control and Flexibility This unit is in excellent very clean condition with a couple of very minor scratches and markings on the exterior. (Tektronix HFS9003 630 mhz programmable stimulus system was posted and is owned by: Henrietta Valentine) |
H.valentine@chicagopartsnetwork.com (Henrietta Valentine) for more information.
