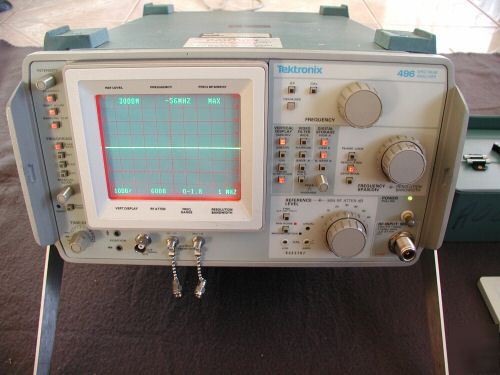

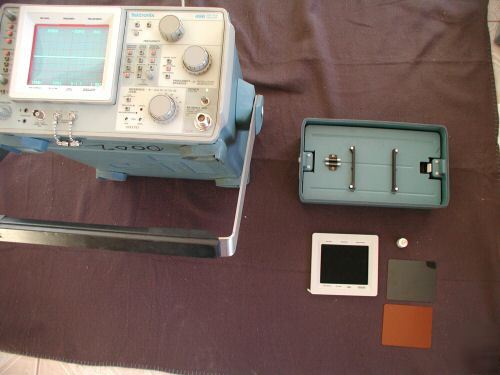

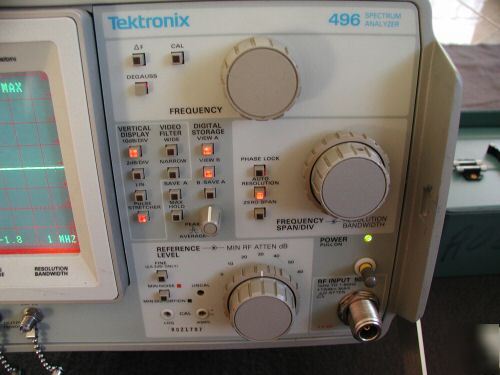

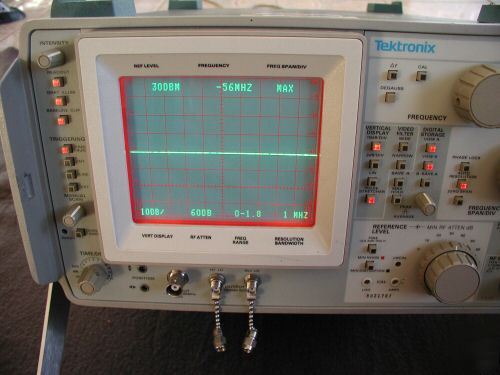

UNIT DOES POWER UP. THE TOP HAS A SMALL DENT. ALL KNOBS,SCREEN,BUTTONS ARE IN EXCELLENT SHAPE. The 496 provides high performance spectrum analysis and measurements in the 1 kHz to 1.8 GHz range. Its high stability and 80 dB dynamic range meet your demands for proof-of-performance measurements, on site or on the bench. Resolution bandwidth can be varied from 1 MHz to 30 Hz over the entire frequency range. Automatic phase lock stabilization reduces incidental FM to 10 Hz p-p; phase noise sidebands are at least -75dBc at 30 times the resolution bandwidth offset. Frequency drift with phase lock is typically 1 kHz in ten minutes after 30-minute warm-up. And the 496 provides 1 kHz frequency resolution in Delta-F mode. - 50 Ohm/75 Ohm Selectable Inputs - Amplitude comparison in 0.25 dB steps - 1 kHz frequency resolution in delta-F mode - Fully calibrated amplitude in dBm or dBV - Digital storage (A & B) allow different sweeps to be compared, analyzed, subtracted - Easy three knob operation with automatic settings (Tektronix 496 spectrum analyzer was posted and is owned by: Cathy Avery) |
cavery@chicagopartsnetwork.com (Cathy Avery) for more information.
