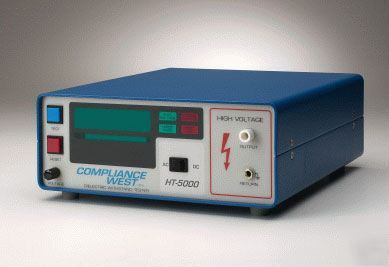

"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment" AC/DC HI-POT TESTER 7 KV / 10 mA Our HT5000-10mA has AC or DC output. Leakage current limits can be set with the rear panel knob from 1mA to 20mA. Normal operation stops testing when a leakage current greater than the set amount or when a dielectric breakdown is encountered. If desired, testing can be set to continue to burn problem areas. Testing will continue until the design current limit of the tester is exceeded; at which time the output voltage will return to zero. Packaged in a normal HT-5000 enclosure. Provided with test leads terminated in alligator clips and a calibration certificate; one year warranty on parts and labor. Output 0-5000Vac or 0-7000Vdc depending on model selected; set by front panel knob Leakage Current Limit 1mA-10mAac or 1 mA-20mAdc depending on model selected, set by rear panel knob Dielectric Breakdown Defeatable, by high frequency detection circuit Test Time Defeatable, 1-60 sec. by front panel knob Ramp Time Manual and automatic. Automatic adjustable by rear panel knob. GOODS: ALL our items are FACTORY NEW (Ac/dc hi-pot tester 7 kv / 10 ma was posted and is owned by: Camille Garrison) |
